N Type Plug for RG-213 — 50 Ohm, 11 GHz, Obsolete

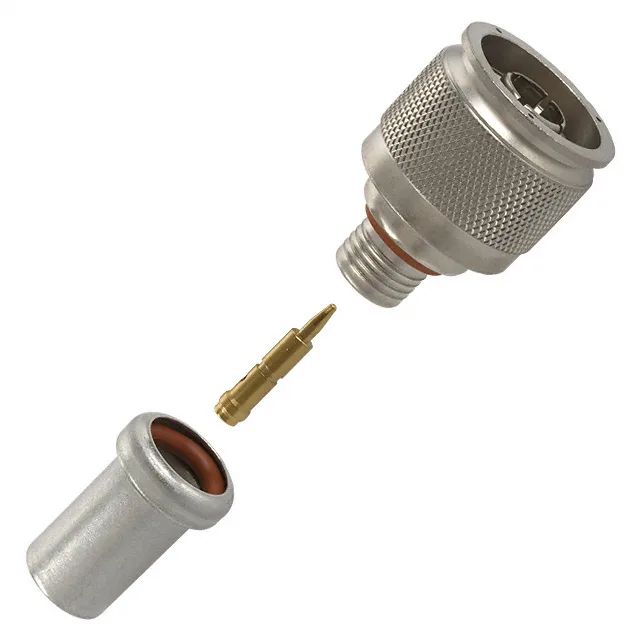

It is a 50 Ohm connector rated to 11 GHz, with a threaded coupling and crimp termination for the shield and centre contact. The kit includes the connector body, one crimp contact, and one ferrule — three pieces total, ready to assemble onto the cable. The N Type interface is a standard 50 Ohm RF connector family common in test equipment, antenna feeds, and base station infrastructure. The 11 GHz bandwidth covers L-band through X-band applications, with the 1000 V rating providing headroom for high-power transmitter feeds on the same cable. The weatherproof rating means the mated pair can be used outdoors or in damp enclosures without additional sealing.
Lifecycle Status — Obsolete, Sourced to Order
The surplus and broker channel is the realistic supply path for this order code.
This is a free-hanging (in-line) plug with a threaded coupling — mates with any standard N Type jack or bulkhead receptacle. The crimp termination for both the shield and centre contact is specific to RG-213 cable; the ferrule compresses over the braid, and the centre contact crimps onto the signal conductor. Rated for 500 mating cycles, which is typical for an RF connector in field-service or test-equipment duty — not a high-cycle production interconnect, but adequate for periodic disconnect in antenna or instrument applications.
