TE Connectivity AMP Connectors 52263-1
MPN52263-1
Active

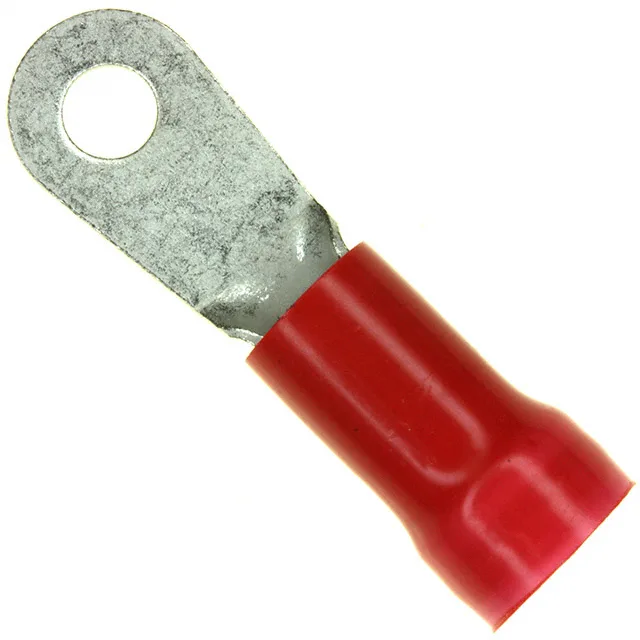

CONN RING CIRC 8AWG #10 CRIMP
$0.8600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 8 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.431\" (10.95mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.040\" (1.02mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 1.576\" (40.03mm) |
| Insulation diameter | 0.330\" (8.38mm) |
