TE Connectivity AMP Connectors 52264 — Ring Terminals

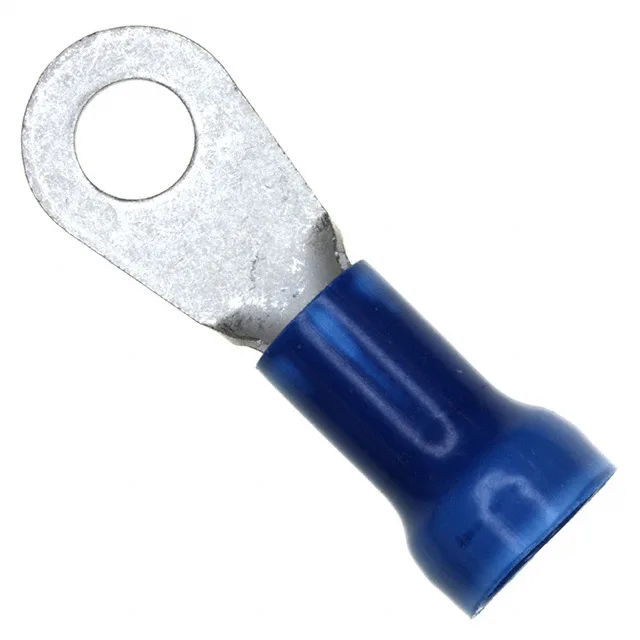

TE 52264 Plasti-Grip Ring Terminal, 6 AWG, #5/16 Stud

MPN52264
Active

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 52264, 6 AWG, #5/16 stud size, insulated, tin-plated copper, free-hanging crimp termination, bulk package.

$1.6100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

52264 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge6 AWG
ColorBlue
Contact materialCopper
Width - outer edges0.625\" (15.88mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageBulk
Thickness0.045\" (1.14mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)5/16 Stud
Contact finishTin
Length - overall1.906\" (48.41mm)
Insulation diameter0.450\" (11.43mm)

Product details

6 AWG ring terminal, #5/16 stud, insulated

The 52264 is the 6 AWG member of TE's Plasti-Grip ring terminal line, terminated with a crimp and insulated with a blue PVC sleeve. It accepts a #5/16 stud, carries a tin-plated copper contact, and measures 1.906" overall length with a 0.625" outer edge width.

Plasti-Grip vs Solistrand — insulated vs non-insulated

The 52264's Plasti-Grip series uses a PVC insulation sleeve rated for 6 AWG with a 0.450" insulation diameter, while the Solistrand series (1377172-7, 1377172-9) is non-insulated and covers 14-16 AWG — the two series share the same tin-plated copper contact material and crimp termination, but differ in wire gauge range and insulation type.

Frequently asked questions

What is the 52264's insulation color and material?

The insulation is blue PVC, rated for 6 AWG with a 0.450" insulation diameter.

Will the 52264 fit a panel designed for the Solistrand 1377172-7?

No — the 52264 uses a #5/16 stud and is insulated for 6 AWG, while the 1377172-7 uses an 8 stud and is non-insulated for 14-16 AWG; the stud size and wire gauge differ.
