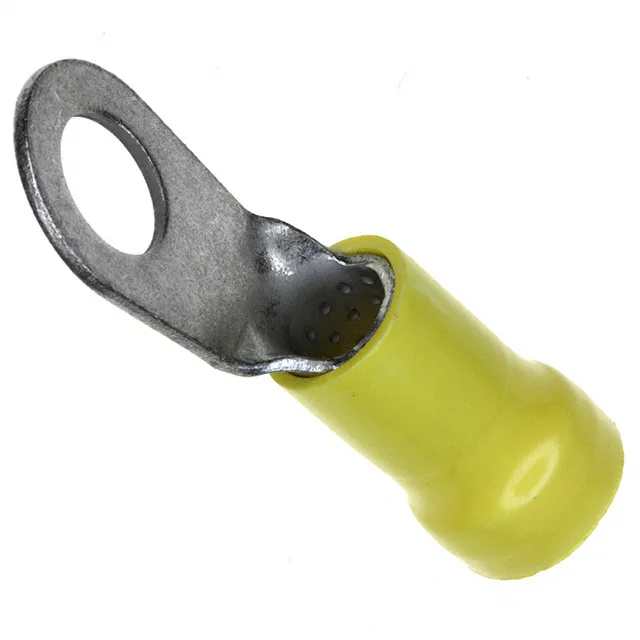

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 52266-4, 4 AWG, #3/8 stud, circular, tin-plated copper contact, PVC insulated, crimp termination, free hanging, bulk.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 4 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.679\" (17.25mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 3/8 Stud |
| Contact finish | Tin |
| Length - overall | 2.014\" (51.16mm) |
| Insulation diameter | 0.450\" (11.43mm) |
The 52266-4 is a 4 AWG circular ring terminal from TE's Plasti-Grip series, designed for #3/8 studs. The tin-plated copper contact and PVC insulation handle the current density of a 4 AWG conductor without the insulation cracking under the crimp barrel.
RoHS3 compliance is documented; no further compliance records (REACH, UL, IEC) are on file from the manufacturer.
