TE Connectivity AMP Connectors 5226990-6 — RF Cable Assemblies

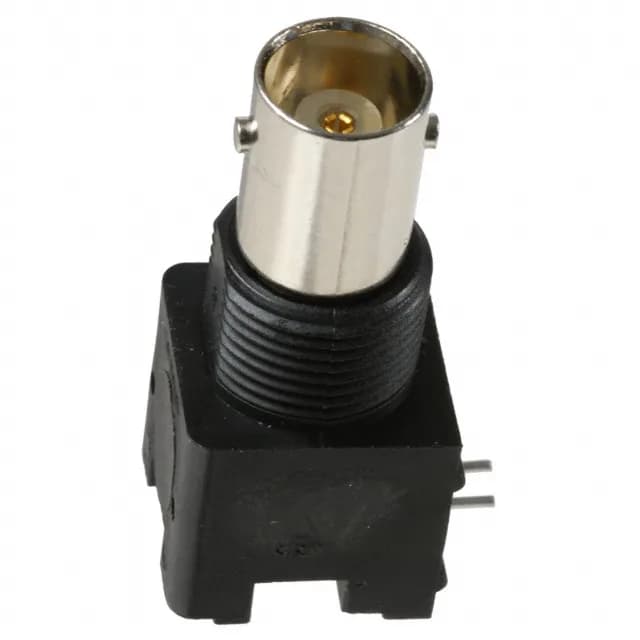

TE Connectivity 5226990-6 BNC Jack, 50 Ohm, 4 GHz, Bulkhead

MPN5226990-6
Active

TE Connectivity, BNC, Jack, Female Socket, 50 Ohms, 4 GHz, 500 Mating Cycles, Panel Mount, Through Hole, Right Angle, Bulk.

$3.9600Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5226990-6 key specifications
ParameterValue
MountingPanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorBlack, Silver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk

All specifications

5226990-6 additional specifications
ParameterValue
FeaturesIsolated
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

This is a single-port bulkhead-mount version secured by a front-side nut, with solder termination on both the centre contact and shield. The 500-cycle mating rating tells you this connector is built for field-service reconnect duty, not just a one-time install.

The bulkhead front-side nut clamps the jack to a chassis cutout — the flange sits outside the panel, so the connector body and cable run are inside the enclosure. Shield termination is solder to the body, which gives a solid ground bond for the 50 Ohm path.

Frequently asked questions

Where can I buy the 5226990-6 and get a price?

Contact the storefront with your BOM line quantity for a same-day quote.

What is the impedance of 5226990-6?

The 5226990-6 is a 50 Ohm BNC jack, designed for standard 50 Ohm coaxial cable and test equipment interfaces.

How many mating cycles does 5226990-6 support?

The 5226990-6 is rated for 500 mating cycles — suited for field-service reconnection and test-point duty where the connector is mated and unmated regularly.
