TE Connectivity AMP Connectors 5227169-4

TE 5227169-4 BNC Jack, 50 Ohm, 4 GHz, Panel Mount

MPN 5227169-4
Active

TE Connectivity 5227169-4 BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, 500 mating cycles, panel mount bulkhead, solder cup, nickel-plated zinc body.

$5.9700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5227169-4 key specifications
ParameterValue
MountingPanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-65°C~165°C
Body materialZinc
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk

All specifications

5227169-4 additional specifications
ParameterValue
FeaturesExtended Insulation

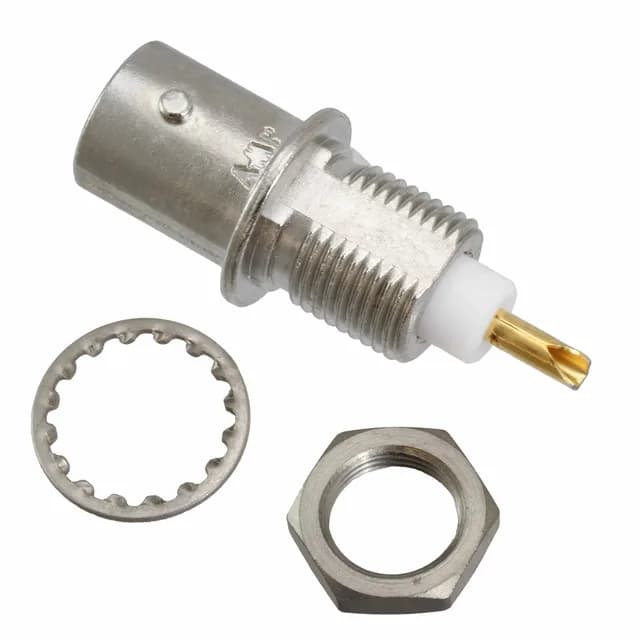

Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

The 5227169-4: The nickel-plated zinc body gives it a standard silver appearance suited for indoor RF test equipment, instrumentation, and telecom infrastructure where the bayonet lock provides quick connect-disconnect.

Termination is solder cup on the centre contact, which means you tin the centre conductor of your coax cable, insert it into the cup, and solder. This is a field-terminatable design but requires a soldering iron — no crimp tool needed.

The 500-cycle rating on the 5227169-4 is a solid durability figure for a bayonet-lock BNC. In a test lab where a cable gets swapped daily, 500 cycles translates to roughly 1-2 years of regular use before the contact wear might start to degrade signal integrity. For a permanent installation that gets mated once, the cycle life is irrelevant — the gold plating still protects against oxidation over the equipment lifetime.
