5227169-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5227169-8 BNC Jack, 50 Ohm, 4 GHz

MPN5227169-8
Active

TE Connectivity BNC jack, female socket, 50 Ohm, 4 GHz, panel mount bulkhead, bayonet lock, solder cup, gold-plated centre contact, 500 mating cycles.

$5.7600Ref. price · indicative, final on quote
5227169-8 datasheet
StockIn Stock (53)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5227169-8 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-65°C~165°C
Body materialZinc
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
FeaturesExtended Insulation
Includes3 pcs - 1 Connector, 1 Nut, 1 Solder Tag
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder Tag
Contact terminationSolder Cup
Center contact platingGold

Product details

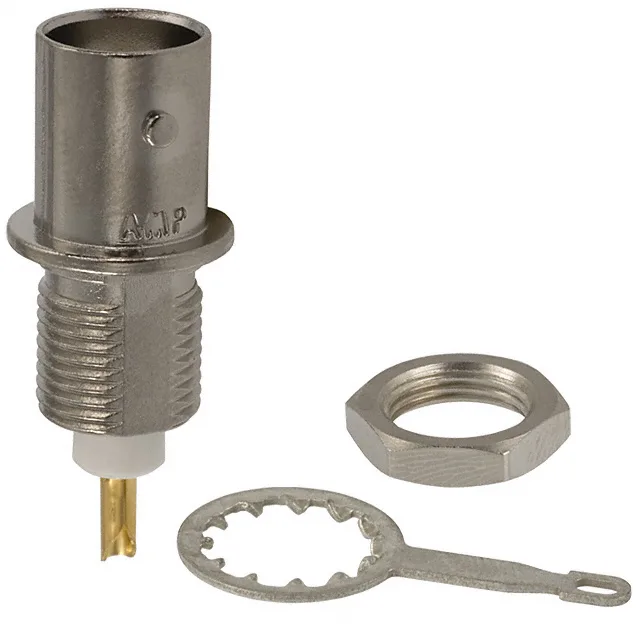

50-Ohm BNC Bulkhead Jack, 4 GHz, Solder Cup Termination

The TE Connectivity 5227169-8 is a 50-Ohm BNC jack (female socket) in a panel-mount bulkhead configuration with a rear-side nut.

The 4 GHz maximum frequency is the practical ceiling for this BNC interface. At 50 Ohms, this jack mates with any 50-Ohm BNC plug. The 500 mating cycles, supported by the gold-plated centre contact, mean this connector is rated for repeated disconnect/reconnect in test equipment, patch panels, or field-deployed systems without contact wear becoming a failure mode.

The shield termination is a solder tag — you solder the cable braid to the tag, then the centre conductor into the solder cup. The kit includes the connector, nut, and solder tag (3 pieces total). Extended insulation on the centre contact adds creepage distance for the 500 V rating.

Frequently asked questions

What is the impedance of 5227169-8?

The 5227169-8 is a 50-Ohm BNC jack, designed for 50-Ohm coaxial systems.
