What This BNC Jack Delivers
The 5227433-1: The bayonet lock gives you a quick, positive mate — the standard BNC interface — and the 500-cycle durability means it holds up to repeated reconnections in test setups or field service.

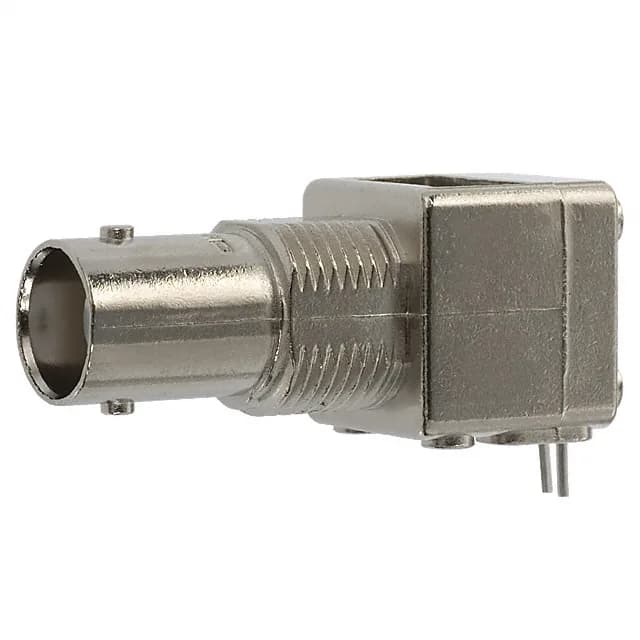

TE Connectivity 5227433-1 BNC Jack, 50 Ohm, 4 GHz, Bulk
MPN5227433-1
Active
TE Connectivity BNC jack, female socket, 50 Ohms, 4 GHz, 500 V, 500 mating cycles, panel mount through-hole right angle, solder termination, tin center contact, bulk.
$9.9200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -55°C ~ 85°C |
| Body material | Zinc |
| Housing color | Silver |
| Dielectric material | Polymethylpentene (PMP) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Tin |
Product details
Frequently asked questions
Where can I buy 5227433-1?
Submit a request for current pricing and lead time — availability is confirmed at quote time.
Is 5227433-1 compatible with 50 ohm systems?
Yes, the 5227433-1 is rated at 50 Ohms impedance, making it a direct match for standard 50 Ohm coaxial systems.
