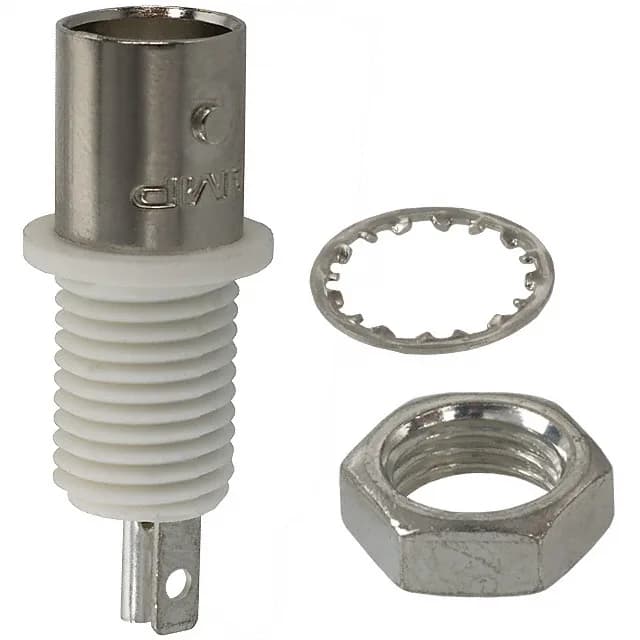

Panel-Mount BNC Jack for RF Signal Paths
The bayonet lock fastening provides quick connect/disconnect with positive retention. This connector is rated for 500 mating cycles, which supports regular reconnection in field-service or lab environments. The tin-plated phosphor bronze center contact and nickel-plated zinc body offer a cost-effective combination for commercial-grade RF interconnects where gold plating is not required. The isolated feature means the connector shell is not internally tied to ground, which is important for applications requiring a floating shield or where ground loops must be avoided.
Termination and Cable Assembly
Contact termination is solder cup, requiring hand soldering of the centre conductor and shield to the cup and body. This is a common method for prototype or low-volume builds; no crimp tooling is needed. The wide temperature span suits outdoor enclosures, engine compartments, or other thermally demanding environments.
