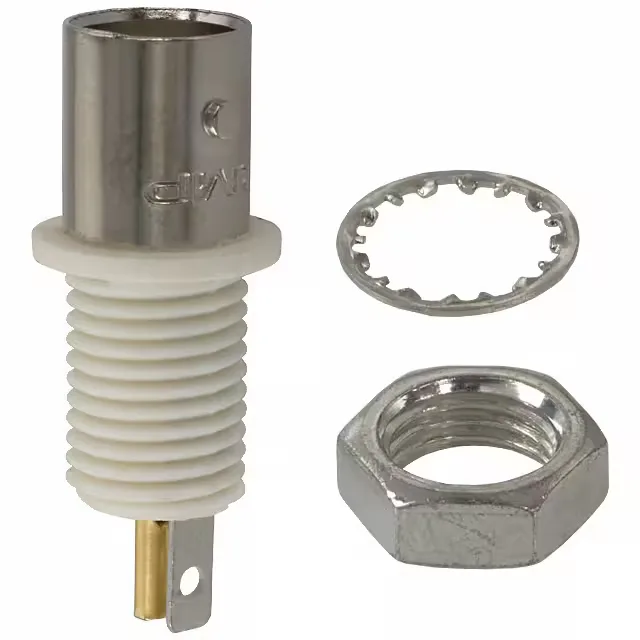

5227726-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5227726-3 BNC Jack, 50 Ohm, 4 GHz, Panel Mount

MPN5227726-3
Active

TE Connectivity BNC jack, female socket, 50 Ohm impedance, 4 GHz max frequency, panel mount with bayonet lock, solder cup termination, gold-plated centre contact, 500 mating cycles, 500 V rating.

$5.5800Ref. price · indicative, final on quote
5227726-3 datasheet
StockIn Stock (42)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5227726-3 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-65°C~165°C
Body materialZinc
Housing colorSilver, White
Dielectric materialPolybutylene Terephthalate (PBT)
Center contact materialPhosphor Bronze
PackageTray
FeaturesIsolated
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

BNC Jack for RF Signal Paths — 50 Ohm, 4 GHz

The gold-plated phosphor bronze centre contact handles 500 mating cycles before the plating wear starts to shift contact resistance; for a BNC that is a solid field-service life.

Mounting and Termination — Bulkhead Kit with Hardware

Termination is solder cup on the centre contact and a solder shield connection; the installer tins the centre conductor and the braid, then solders each cup.

Ratings and Signal Integrity

Rated 500 V — the voltage limit is set by the air gap and PBT dielectric, not the contact spacing. The isolated feature (listed as a feature) means the shell is not tied to the centre contact path — the ground is carried through the panel mount and shield solder connection.

Frequently asked questions

What is the impedance of the 5227726-3?

The 5227726-3 is a 50 Ohm BNC jack, rated to 4 GHz maximum frequency.

Does the 5227726-3 come with mounting hardware?

Yes, the package includes 3 pieces: the connector, a lockwasher, and a nut — everything needed for the bulkhead rear-side nut mount.
