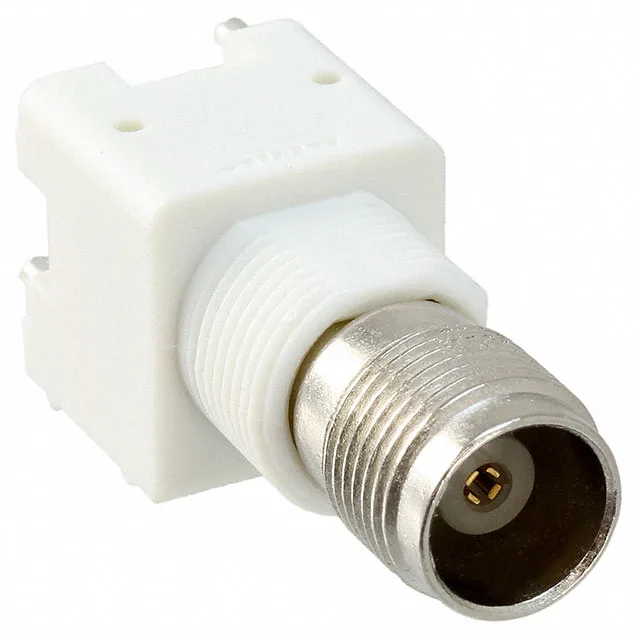

TE 5227820-1 TNC Jack, 50 Ohm, 4 GHz, Panel Mount

MPN5227820-1
Active

TE Connectivity 5227820-1 TNC jack, female socket, 50 Ohm impedance, 4 GHz max frequency, 500 V rating, 500 mating cycles, panel mount with bulkhead nut, through-hole solder termination, gold-plated centre contact.

$11.7900Ref. price · indicative, final on quote
5227820-1 datasheet
StockIn Stock (30)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5227820-1 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C ~ 165°C
Body materialZinc
Housing colorNatural, Silver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageTray
FeaturesBoard Guide, Isolated
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

TNC Bulkhead Jack, 50 Ohm, 4 GHz — Panel-Mount RF Port

The TE Connectivity 5227820-1 is a TNC jack (female socket) for panel-mount RF interconnect.

4 GHz Ceiling vs the 22 GHz OSP Sibling

The 5227820-1 TNC jack tops out at 4 GHz, while the TE 1057230-1 OSP jack (snap-on fastening, gold body) is rated to 22 GHz. Both are 50 Ohm, single-port, panel-mount jacks with solder termination and gold centre contacts, but the TNC's threaded coupling trades bandwidth for ruggedised retention — the OSP's snap-on is quicker to mate but less secure under vibration. For sub-4 GHz applications (cellular, ISM, GPS) the TNC is the more mechanically robust choice; above 4 GHz the OSP sibling is the correct fit.

No gasket or O-ring is listed in the spec — if an environmental seal is required, a separate sealing washer should be specified at the panel interface.
