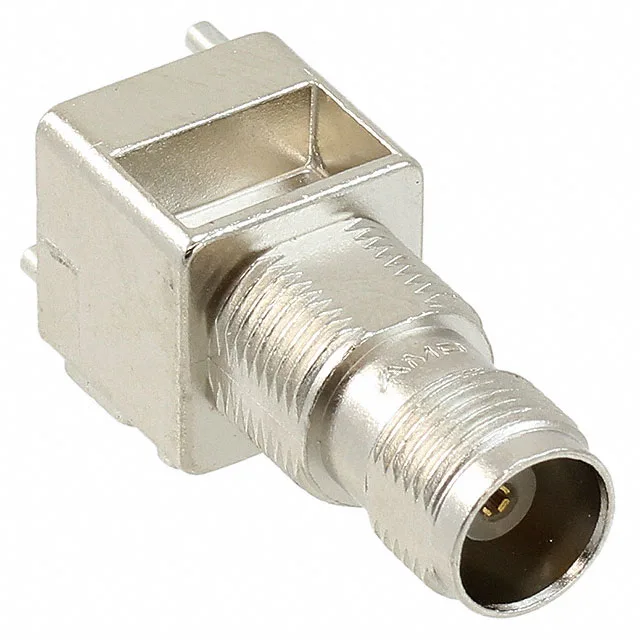

5227835-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5227835-1 TNC Jack, 50 Ohm, 4 GHz, Bulkhead

MPN5227835-1
Active

TE Connectivity TNC jack, female socket, 50 Ohm, 4 GHz, 1 port, panel mount bulkhead, solder termination, gold centre contact, nickel body, tube package.

$12.7300Ref. price · indicative, final on quote
5227835-1 datasheet
StockIn Stock (37)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5227835-1 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialZinc
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageTube
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

4 GHz Ceiling — Where This TNC Fits

The 5227835-1: Rated to 4 GHz maximum frequency, this jack covers cellular bands (LTE, 5G sub-6), ISM applications at 2.4 and 5.8 GHz, and most industrial RF links. The 500 mating cycles with gold-on-phosphor-bronze centre contact mean it handles repeated connect/disconnect in test setups or field-maintained gear without the contact resistance drifting.

Mounting and Termination — Bulkhead with Solder Tails

Panel mount through a bulkhead hole, secured by the front-side nut. The shield termination is solder — you tin the braid and flow it into the shell cup. Centre contact is also solder termination, so you'll need a soldering iron rated for the mass of the body. No crimp tool required, which simplifies field installation if you have a clean workbench. The tube package ships one jack per tube — not tape-and-reel, so plan for manual placement if you're populating boards.

Frequently asked questions

What is the impedance of 5227835-1?

The 5227835-1 is a 50 Ohm TNC jack, matching standard 50 Ohm coaxial cable and system impedance.

Can 5227835-1 be used with RG58 cable?

The TNC interface and 50 Ohm impedance are standard for RG58-class cables, though the specific cable group is not listed in the datasheet. The solder termination works with RG58 braid and centre conductor.
