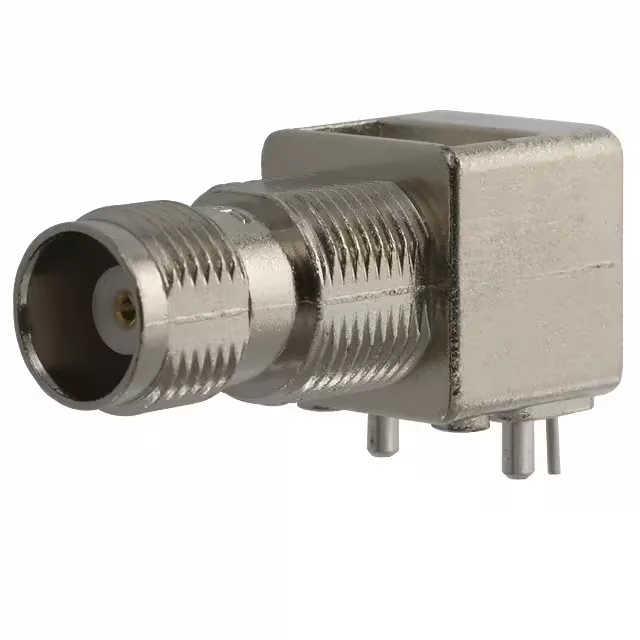

5227839-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5227839-1 TNC Jack, 50 Ohm, 4 GHz

MPN5227839-1
Active

TE Connectivity TNC jack, female socket, 50 Ohm, 4 GHz, 500 V, 500 mating cycles, panel mount through hole right angle, bulk package.

$12.9300Ref. price · indicative, final on quote
5227839-1 datasheet
StockIn Stock (29)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5227839-1 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialZinc
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
FeaturesBoard Guide
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The TE Connectivity 5227839-1 is a TNC jack, female socket, built for 50 Ohm RF signal paths. The centre contact is gold-plated phosphor bronze, good for the 500 mating cycles the connector is rated to. The body is nickel-plated zinc, with a polymethylpentene (PMP) dielectric. It ships in bulk packaging.

This TNC jack mounts through the panel bulkhead with a front-side nut and terminates to the PCB through a right-angle solder tail.

Operating environment

The -65°C to 165°C operating range covers outdoor telecom cabinets, engine-compartment RF links, and industrial RF heaters where the ambient temperature cycles hard.

Frequently asked questions

Where can I buy the 5227839-1 TNC connector?

The 5227839-1 is sourced to order against an RFQ through independent distribution.

What is the impedance of the 5227839-1?

The 5227839-1 is a 50 Ohm TNC jack, the standard impedance for RF signal paths up to 4 GHz.

Does the 5227839-1 have a board guide?

Yes, the 5227839-1 includes a board guide feature to help align the connector during PCB assembly, protecting the signal pins from shear stress.
