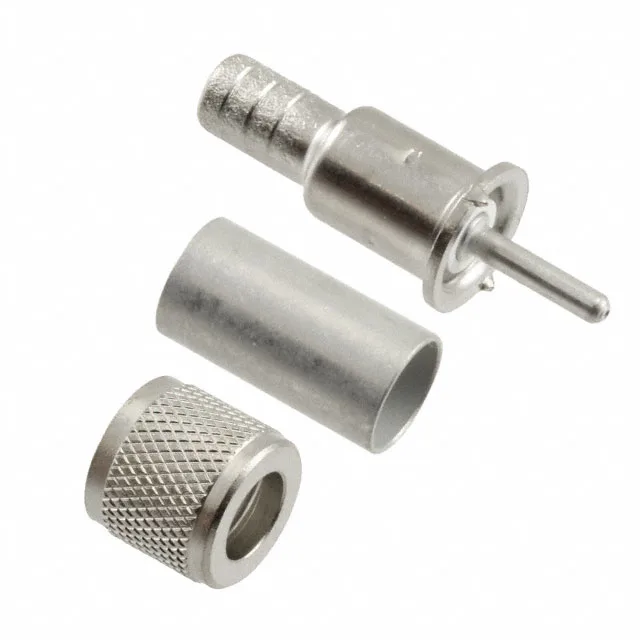

5228664-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5228664-2 UHF Mini Plug, Male Pin, 2 GHz

MPN5228664-2
Active

TE Connectivity UHF Mini series, 5228664-2, plug male pin coaxial connector, 1 port, crimp termination, 2 GHz max, 335 V, 500 mating cycles, nickel body, free hanging.

$10.1700Ref. price · indicative, final on quote
5228664-2 datasheet
StockIn Stock (47)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5228664-2 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating335 V
Frequency - max2 GHz
Cable groupRG-142, 223, 400
Operating temperature-55°C ~ 85°C
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
PackageBulk
Includes3 pcs - 1 Connector, 1 Collar, 1 Ferrule
ImpedanceNon-Constant
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingTin

Product details

UHF Mini Plug for RG-142, 223, and 400 Coax

2 GHz Ceiling and Non-Constant Impedance

Rated to 2 GHz maximum frequency. The impedance is listed as non-constant.

500 Mating Cycles with Tin-Plated Center Contact

The center contact is plated with tin, not gold, which caps practical reconnect duty at the rated 500 mating cycles. For field installations that are mated once and left, this is fine; for frequent connect-disconnect in a test fixture, the tin plating will wear faster than a gold-over-nickel contact.

Rated 335 V, the connector handles RF power levels where the peak envelope voltage stays within that limit.

Frequently asked questions

Does the 5228664-2 work with RG-142, 223, and 400 cables?

Yes, the 5228664-2 is specified for cable groups RG-142, RG-223, and RG-400. The crimp termination on both shield and center contact matches the braid and center conductor dimensions of these cables.
