TE Connectivity BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, crimp termination, nickel-plated zinc body, gold-plated beryllium copper center contact, for RG-59/62 coax, bulk.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-59, 59A, 59B, 62, 62A, 62B |
| Operating temperature | -55°C ~ 85°C |
| Body material | Zinc |
| Housing color | Silver |
| Dielectric material | Polypropylene (PP) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Parameter | Value |
|---|---|

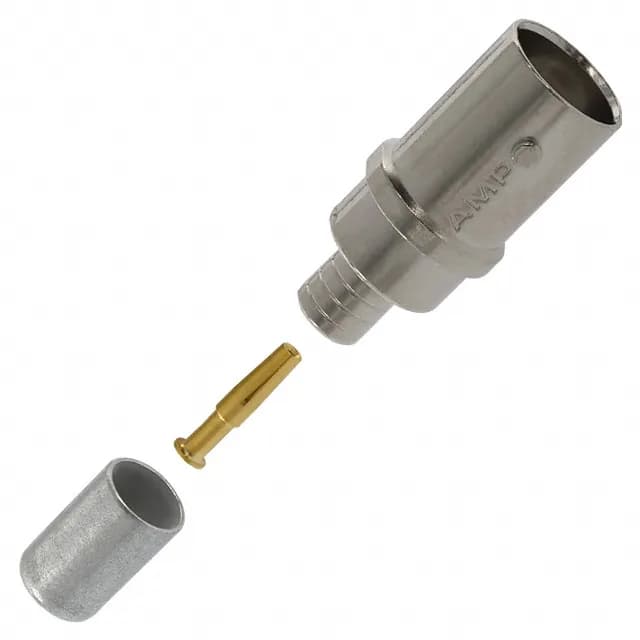

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
Both the shield and the center contact are crimp-terminated — no solder, no heat gun. The cable group covers RG-59, 59A, 59B, 62, 62A, 62B.
This impedance must match the system characteristic impedance — typically 50 Ohm for RF test equipment, telecom, and instrumentation — to avoid signal reflections and power loss.
