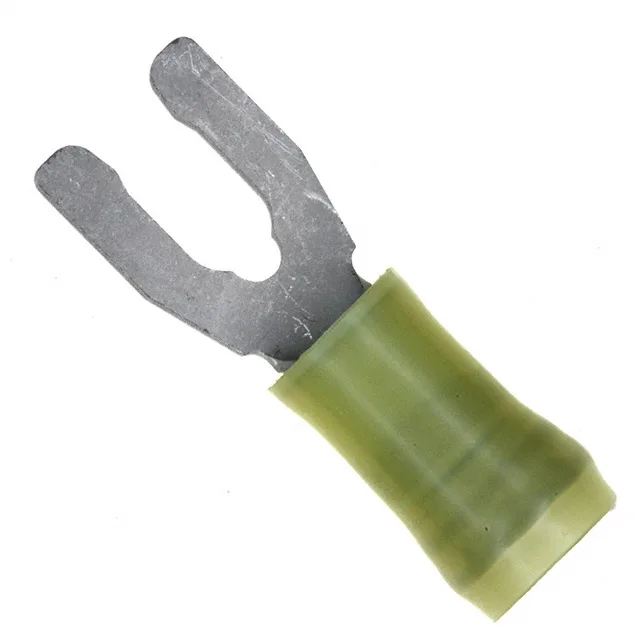

TE Connectivity AMP Connectors PIDG spade terminal, order code 52431-1, 10-12 AWG, #8 stud, yellow, insulated, tin-plated phosphor bronze, serrated crimp, free hanging in-line.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 1.174\" (29.82mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
| Length - termination | 0.601\" (15.27mm) |
| Tongue inside opening | 0.164\" (4.17mm) |
| Length - ring center to termination | 0.273\" (6.93mm) |
The 52431-1 is a PIDG-series spade terminal from TE Connectivity AMP Connectors, accepting 10-12 AWG wire and fitting an #8 stud. Serrated crimp termination grips the conductor; the yellow nylon insulation covers 0.150" to 0.250" insulation diameter. Tin-plated phosphor bronze contact.
Yellow polyamide (nylon) insulation. The insulation diameter range is 0.150" to 0.250" (3.81 mm to 6.35 mm).
