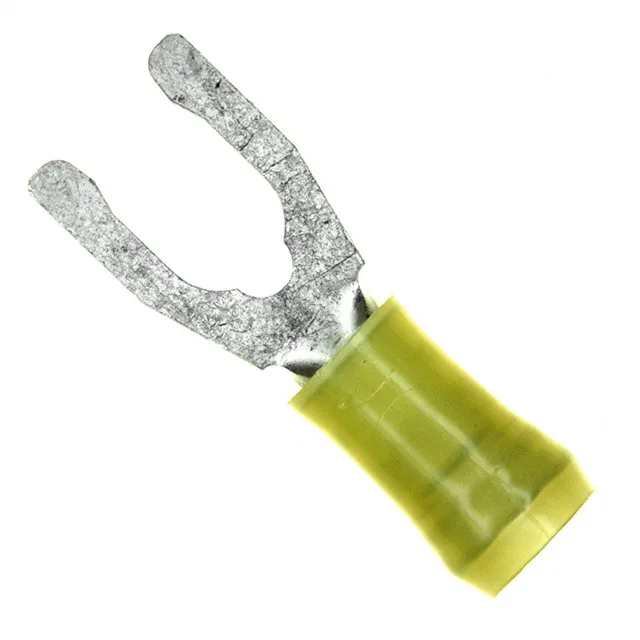

TE Connectivity AMP Connectors PIDG spade terminal, order code 52433-1, 10-12 AWG, #1/4 stud, tin-plated phosphor bronze contact, insulated yellow nylon, serrated termination, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.437\" (11.10mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.289\" (32.74mm) |
| Insulation diameter | 0.253\" (6.43mm) |
| Length - termination | 0.601\" (15.27mm) |
| Tongue inside opening | 0.255\" (6.48mm) |
| Length - ring center to termination | 0.345\" (8.76mm) |
The 52433-1: The tin-plated phosphor bronze contact carries the current; the insulated yellow nylon sleeve covers the crimp barrel and part of the wire insulation, with a serrated termination that grips the conductor during crimping.
The insulation sleeve is yellow.
