TE Connectivity AMP Connectors 52730-1 — Spade Terminals

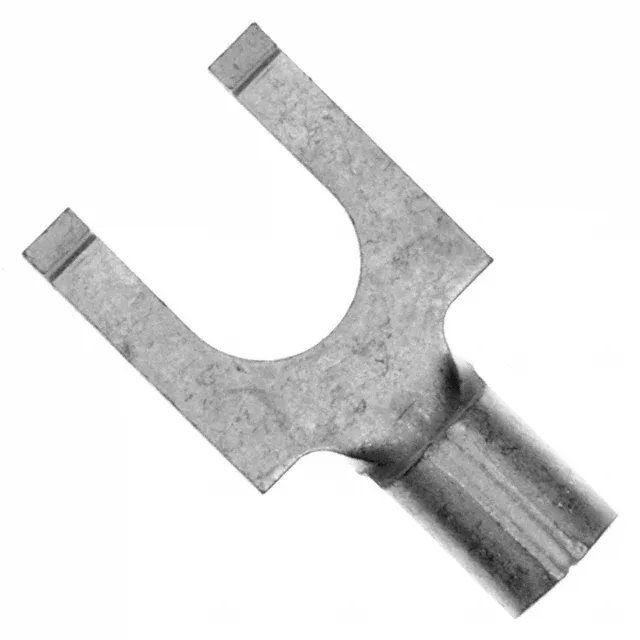

52730-1 TE Connectivity Solistrand Spade Terminal #8

MPN52730-1
Active

TE Connectivity AMP Connectors Solistrand spade terminal, order code 52730-1, 16-22 AWG, #8 stud, tin-plated copper, non-insulated, flanged, crimp termination, free hanging, Tape & Reel.

$0.6208Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

52730-1 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeFlanged
Wire gauge16-22 AWG
Contact materialCopper
Width - outer edges0.296\" (7.52mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBrazed Seam, Serrated Termination
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)8 Stud
Contact finishTin
Length - overall0.514\" (13.06mm)
Length - termination0.181\" (4.60mm)
Tongue inside opening0.171\" (4.34mm)
Length - ring center to termination0.203\" (5.16mm)

Product details

Solistrand #8 spade for 16-22 AWG

The 52730-1 is a non-insulated flanged spade terminal from the TE Connectivity Solistrand series, accepting 16-22 AWG wire and fitting a #8 stud. Tin-plated copper construction with a brazed seam and serrated termination — the serrations bite through oxide on the conductor during crimp for a gas-tight joint.

Siblings on the same stud

Within the #8-stud Solistrand family, the 52730-1's 16-22 AWG range overlaps with the 52710-1 (same wire gauge, phosphor bronze contact, bulk packaging) and the 2-34117-2 (same copper contact and wire gauge, wider 0.375" outer edges). The 52713-1 steps up to 14-16 AWG for heavier wire.

Frequently asked questions

Will 52730-1 drop into a panel that was specified around 52710-1 without rewiring?

Both terminals fit a #8 stud and accept 16-22 AWG wire, but the 52730-1 uses copper contact material and ships in Tape & Reel, while the 52710-1 uses phosphor bronze and ships in bulk. The tongue inside opening differs — 0.171" (4.34mm) on the 52730-1 versus 0.164" (4.17mm) on the 52710-1 — so the stud fit is not identical.

What compliance documentation does TE Connectivity AMP Connectors provide for 52730-1?

The 52730-1 is RoHS Compliant per the manufacturer listing.
