TE Connectivity AMP Connectors 52927 — Spade Terminals

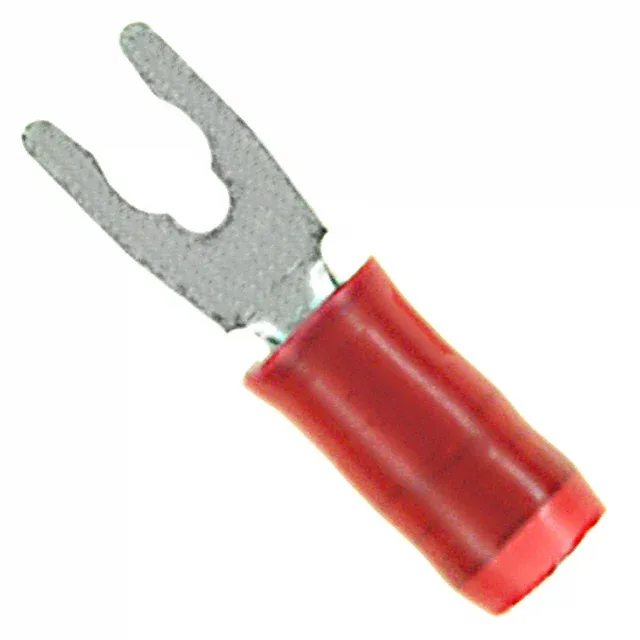

TE PIDG 52927 Spade Terminal, 16-22 AWG, #4 Stud, Red

MPN52927
Active

TE Connectivity AMP Connectors PIDG spade terminal, order code 52927, 16-22 AWG, #4 stud, red, insulated, tin-plated phosphor bronze, serrated crimp, free hanging in-line.

$0.6200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

52927 key specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeSpring, Snap
Wire gauge16-22 AWG
ColorRed
Contact materialPhosphor Bronze
Width - outer edges0.203\" (5.16mm)
Material - insulationPolyamide (PA), Nylon
PackageBulk
FeaturesSerrated Termination
InsulationInsulated
TerminationCrimp

All specifications

52927 additional specifications
ParameterValue
Stud (Tab size)4 Stud
Contact finishTin
Length - overall0.799\" (20.29mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)
Length - termination0.404\" (10.26mm)
Tongue inside opening0.112\" (2.84mm)
Length - ring center to termination0.250\" (6.35mm)

Product details

PIDG spade terminal, #4 stud, 16-22 AWG

The 52927 is the #4-stud, red-insulated member of TE's PIDG spade terminal line, accepting 16-22 AWG wire with a serrated crimp barrel. The tin-plated phosphor bronze contact and nylon insulation suit general-purpose power and signal termination in free-hanging applications.

Stud size and wire range across the series

The 52927 uses a #4 stud opening (0.112" tongue inside opening) and accepts 16-22 AWG. The same PIDG series also offers a #6-stud version (52409) for the same wire range, and a 22-26 AWG variant (52922) on the same #4 stud.

Frequently asked questions

What compliance documentation does TE provide for the 52927?

The 52927 is ROHS3 compliant.
