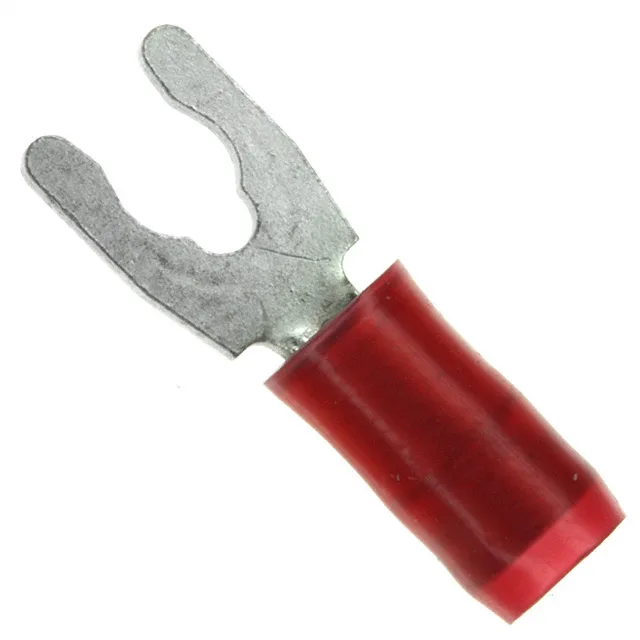

PIDG spade terminal, #6 stud, 16-22 AWG
The 52929-1: The tin-plated copper contact and insulated red nylon body suit general-purpose power and signal termination in free-hanging inline applications.
TE PIDG 52929-1 Spade Terminal, 16-22 AWG, #6 Stud, Red
MPN52929-1
Active
TE Connectivity AMP Connectors PIDG spade terminal, order code 52929-1, 16-22 AWG, #6 stud size, tin-plated copper contact, insulated red nylon, free hanging crimp termination, 0.799 in overall length.
$0.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.250\" (6.35mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.799\" (20.29mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
| Length - termination | 0.404\" (10.26mm) |
| Tongue inside opening | 0.140\" (3.56mm) |
| Length - ring center to termination | 0.250\" (6.35mm) |
