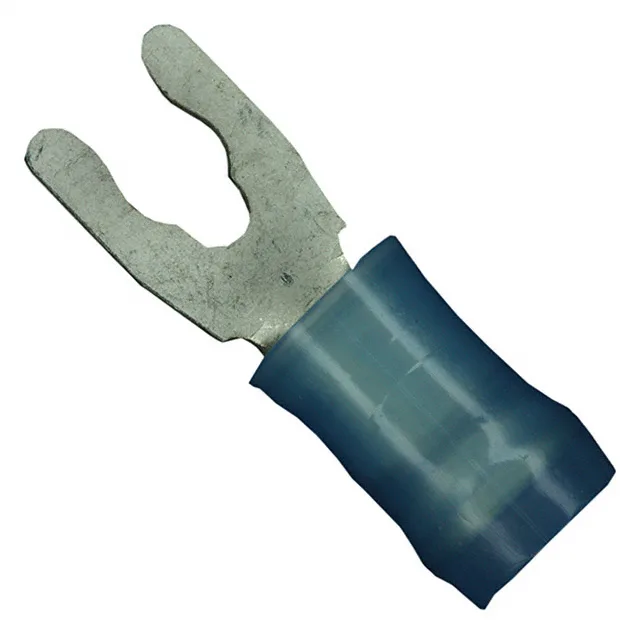

TE Connectivity PIDG spade terminal, order code 52934, 14-16 AWG, #5 stud, blue, insulated, tin-plated phosphor bronze contact, serrated crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.250\" (6.35mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 5 Stud |
| Contact finish | Tin |
| Length - overall | 0.799\" (20.29mm) |
| Insulation diameter | 0.115\" ~ 0.170\" (2.92mm ~ 4.32mm) |
| Length - termination | 0.404\" (10.26mm) |
| Tongue inside opening | 0.130\" (3.30mm) |
| Length - ring center to termination | 0.250\" (6.35mm) |
The 52934 is a PIDG-series spade terminal accepting 14-16 AWG wire, with a #5 stud size and blue nylon insulation. The tin-plated phosphor bronze contact and serrated termination provide a gas-tight crimp; the free-hanging design mates with a #5 stud.
