TE Connectivity AMP Connectors 52951-1 — Spade Terminals

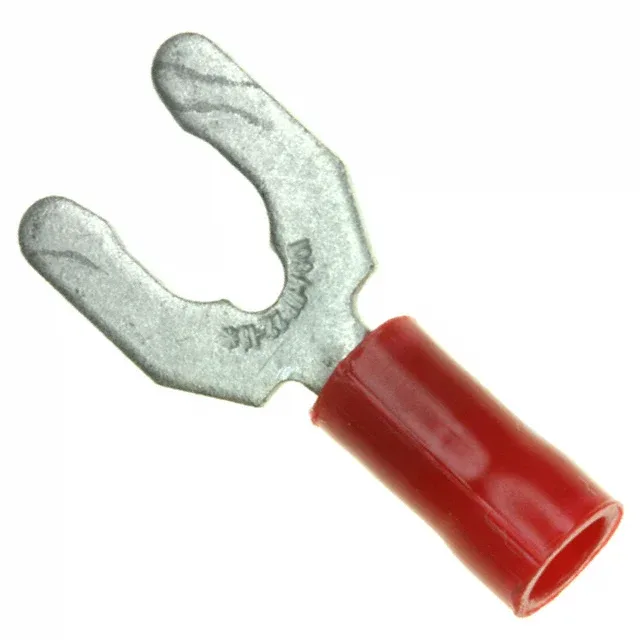

TE Connectivity 52951-1 Plasti-Grip Spade Terminal

MPN52951-1
Active

TE Connectivity AMP Connectors Plasti-Grip spade terminal, order code 52951-1, 16-22 AWG, #10 stud size, tin-plated brass contact, insulated, red PVC sleeve, spring snap terminal type, crimp termination, serrated termination.

$1.0100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

52951-1 key specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeSpring, Snap
Wire gauge16-22 AWG
ColorRed
Contact materialBrass
Width - outer edges0.406\" (10.31mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
InsulationInsulated
TerminationCrimp

All specifications

52951-1 additional specifications
ParameterValue
Stud (Tab size)10 Stud
Contact finishTin
Length - overall0.920\" (23.37mm)
Insulation diameter0.105\" ~ 0.140\" (2.67mm ~ 3.56mm)
Length - termination0.416\" (10.57mm)
Tongue inside opening0.190\" (4.83mm)
Length - ring center to termination0.281\" (7.14mm)

Product details

Red PVC spade for 16-22 AWG

The 52951-1 is the red-insulated #10-stud member of TE Connectivity's Plasti-Grip spade terminal line, accepting 16-22 AWG wire with a tin-plated brass crimp contact. The PVC sleeve is colour-coded red for the 16-22 AWG range and covers the crimp barrel, with a serrated inner barrel for conductor grip.

Stud size and insulation diameter

Within the Plasti-Grip series the 52951-1 (#10 stud, 16-22 AWG, 0.105"~0.140" insulation diameter) sits alongside the 52951-3 (#10 stud, 16-22 AWG, 0.150"~0.200" insulation diameter) and the 52950-3 (#8 stud, 16-22 AWG, 0.150"~0.200" insulation diameter) — the stud size and insulation range are the selection axes, not the terminal body width or overall length.

Frequently asked questions

Where can I buy the 52951-1 and how do I get a price?

The 52951-1 is available through TE Connectivity AMP Connectors distribution channels. Submit an RFQ for current pricing and availability.

What is the colour of the 52951-1 insulation?

The insulation is red, per the Plasti-Grip colour code for the 16-22 AWG wire range.
