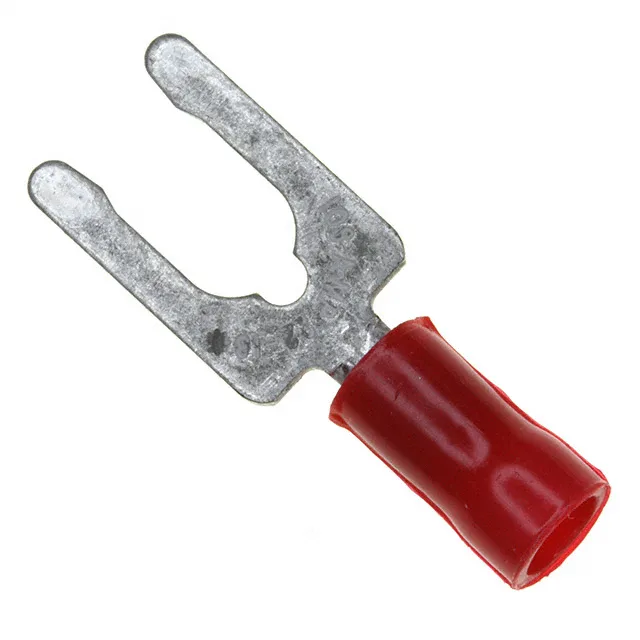

TE Connectivity AMP Connectors 52951-3
MPN52951-3
Active
CONN SPADE TERM 16-22AWG #10 RED
$0.7400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Brass |
| Width - outer edges | 0.406\" (10.31mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.969\" (24.60mm) |
| Insulation diameter | 0.150\" ~ 0.200\" (3.81mm ~ 5.08mm) |
| Length - termination | 0.465\" (11.81mm) |
| Tongue inside opening | 0.190\" (4.83mm) |
| Length - ring center to termination | 0.281\" (7.14mm) |
