TE Connectivity AMP Connectors 53123-1 — Spade Terminals

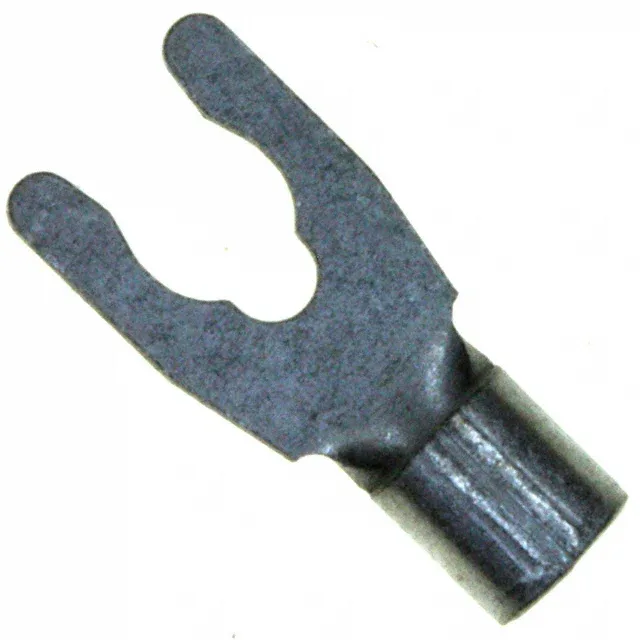

53123-1 Solistrand Spade Terminal, 14-16 AWG, #6 Stud

MPN53123-1
Active

TE Connectivity Solistrand spade terminal, order code 53123-1, 14-16 AWG, #6 stud, tin-plated phosphor bronze, brazed seam, serrated termination, free hanging (in-line), crimp termination, bulk packaging.

$0.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

53123-1 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeSpring, Snap
Wire gauge14-16 AWG
Contact materialPhosphor Bronze
Width - outer edges0.250\" (6.35mm)
PackageBulk
FeaturesBrazed Seam, Serrated Termination
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)6 Stud
Contact finishTin
Length - overall0.576\" (14.63mm)
Length - termination0.181\" (4.60mm)
Tongue inside opening0.140\" (3.56mm)
Length - ring center to termination0.250\" (6.35mm)

Product details

The 53123-1 is a 14-16 AWG member of TE's Solistrand spade terminal line, terminated by crimp and accepting a #6 stud. Tin-plated phosphor bronze contact with a brazed seam and serrated termination — the serrations bite into the conductor strands during crimp for mechanical grip and electrical continuity.

Stud size and wire gauge across the series

The 53123-1 (14-16 AWG) sits between the 53120-1 (16-22 AWG) and the 53126-1 (10-12 AWG) in the Solistrand series — all three share the same #6 stud size, 0.250" (6.35mm) outer width, and tin-plated phosphor bronze construction, so the wire gauge is the selection axis.

Frequently asked questions

Will the 53123-1 fit a panel specified for the 53120-1?

The 53123-1 accepts 14-16 AWG wire, while the 53120-1 accepts 16-22 AWG; both use the same #6 stud, 0.250" (6.35mm) outer width, and tin-plated phosphor bronze contact. The wire gauge difference is the selection axis — the stud size and footprint are shared.

What compliance documentation is available for the 53123-1?

The 53123-1 is ROHS3 compliant per TE's published status. Additional documentation such as UL or IEC ratings is not listed in the available spec data.
