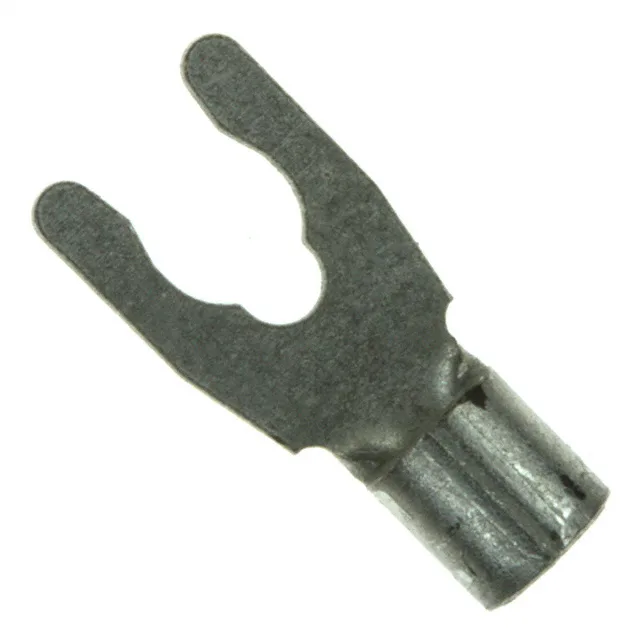

TE Connectivity AMP Connectors 53123-2
MPN53123-2
Active
CONN SPADE TERM 14-16AWG #6
$0.6000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 14-16 AWG |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.250\" (6.35mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.576\" (14.63mm) |
| Length - termination | 0.181\" (4.60mm) |
| Tongue inside opening | 0.140\" (3.56mm) |
| Length - ring center to termination | 0.250\" (6.35mm) |
