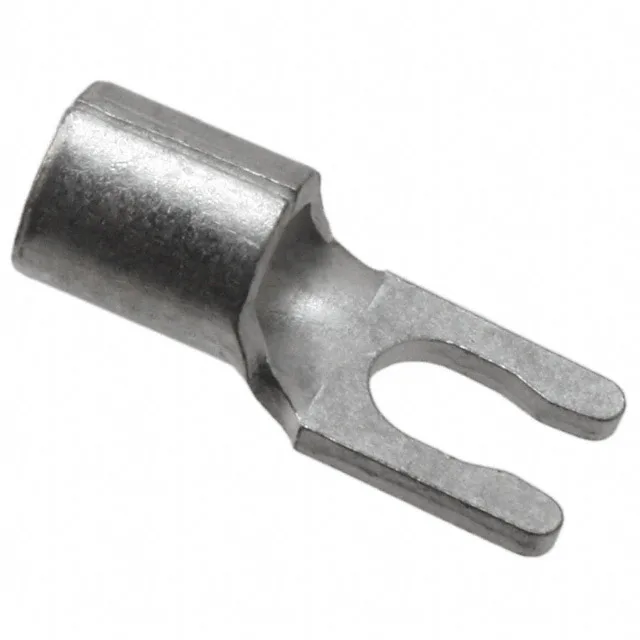

TE Connectivity AMP Connectors Solistrand spade terminal, order code 53126-2, 10-12 AWG, #6 stud, tin-plated phosphor bronze, non-insulated, crimp termination, free hanging (in-line), Tape & Reel.
TE Connectivity 53126-2 Solistrand Spade Terminal, 10-12 AWG
MPN53126-2
Active
TE Connectivity AMP Connectors Solistrand spade terminal, order code 53126-2, 10-12 AWG, #6 stud, tin-plated phosphor bronze, non-insulated, crimp termination, free hanging (in-line), Tape & Reel.
$0.7300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 10-12 AWG |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.250\" (6.35mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.636\" (16.15mm) |
| Length - termination | 0.278\" (7.06mm) |
| Tongue inside opening | 0.112\" (2.84mm) |
| Length - ring center to termination | 0.174\" (4.42mm) |
Product details
Frequently asked questions
What compliance documentation does TE Connectivity provide for the 53126-2?
The 53126-2 is ROHS3 compliant. TE Connectivity AMP Connectors provides the standard RoHS certificate of compliance; no UL or IEC listing is on record for this part.
