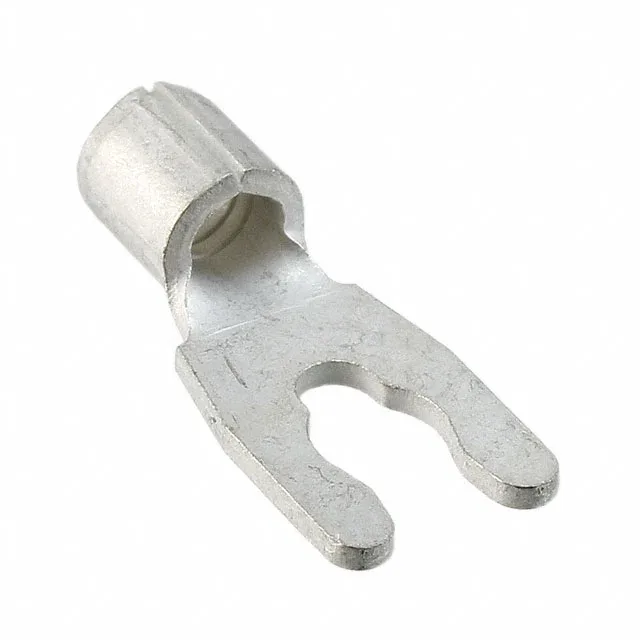

TE Connectivity AMP Solistrand spade terminal, order code 53177-1, 14-16 AWG, #5 stud size, tin-plated phosphor bronze, non-insulated, crimp termination, free hanging, bulk package.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 14-16 AWG |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.250\" (6.35mm) |
| Package | Bulk |
| Features | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 5 Stud |
| Contact finish | Tin |
| Length - overall | 0.576\" (14.63mm) |
| Tongue inside opening | 0.098\" (2.50mm) |
| Length - ring center to termination | 0.250\" (6.35mm) |
The 53177-1 is a non-insulated Solistrand spade terminal from TE Connectivity AMP, accepting 14-16 AWG wire with a #5 stud size. The crimp termination uses a brazed seam and serrated inner barrel for mechanical grip and electrical continuity; the tin-plated phosphor bronze contact resists corrosion in moderate environments.
Overall length is 0.576" (14.63 mm). The tongue inside opening is 0.098" (2.50 mm), and the width across outer edges is 0.250" (6.35 mm).
Yes, the terminal includes both a brazed seam and serrated termination for secure crimp and consistent electrical contact.
