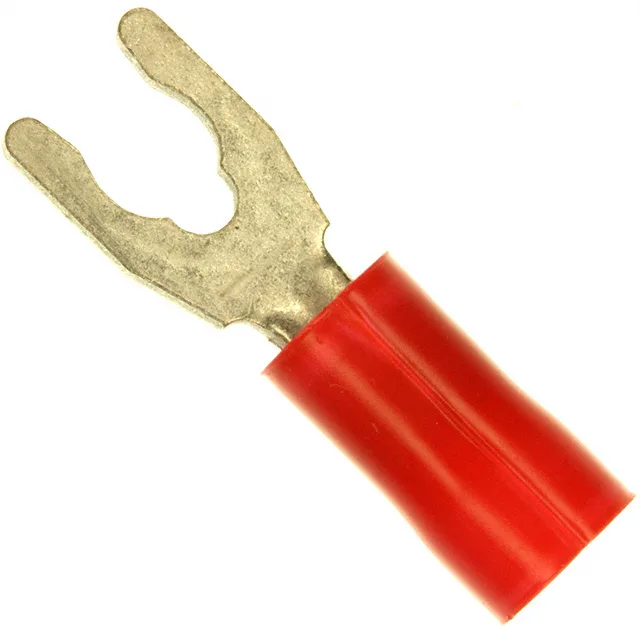

TE Connectivity AMP Connectors Plasti-Grip spade terminal, order code 53240-1, 16-22 AWG, #6 stud, red, tin-plated brass, PVC insulated, serrated termination, free hanging, bulk.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Brass |
| Width - outer edges | 0.234\" (5.94mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.811\" (20.60mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.140\" (3.56mm) |
| Length - ring center to termination | 0.250\" (6.35mm) |
The 53240-1: The tin-plated brass contact and PVC insulation cover a 0.105" to 0.140" insulation diameter range; the serrated termination bites into the conductor for pull-force retention.
Sourced per RFQ against BOM quantity; lead time and pricing confirmed at quote.
The 53240-1 and 53240-2 share the same #6 stud size, tongue opening (0.140"), and outer-edge width (0.234") — they are functionally identical in fit. The 53240-2 ships in Tape & Reel packaging; the 53240-1 ships in Bulk.
