TE Connectivity AMP Connectors 53246-2
MPN53246-2
Active

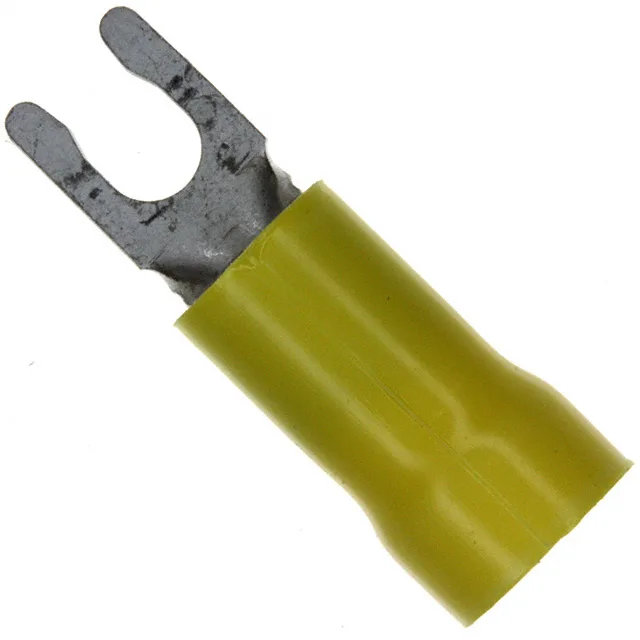

CONN SPADE TERM 10-12AWG #6 YEL
$1.5700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Brass |
| Width - outer edges | 0.250\" (6.35mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.959\" (24.36mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
| Length - termination | 0.601\" (15.27mm) |
| Tongue inside opening | 0.140\" (3.56mm) |
| Length - ring center to termination | 0.174\" (4.42mm) |
