TE Connectivity AMP Connectors 5332225-5 — RF Cable Assemblies

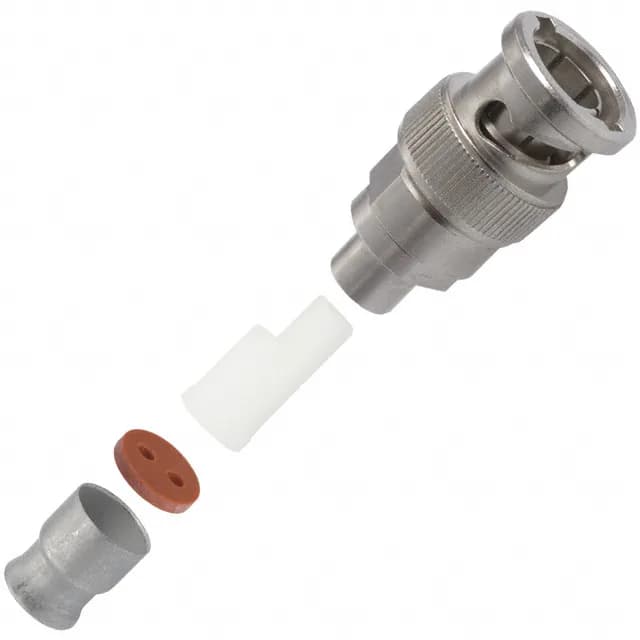

TE Connectivity 5332225-5 Coaxicon BNC Twinaxial Plug Kit

MPN5332225-5
Active

TE Connectivity Coaxicon BNC Twinaxial Plug Kit, 5332225-5, 1 port, Non-Constant impedance, 500 V, 200 mating cycles, Bayonet lock, Crimp termination, -55°C to 85°C, Bulk.

$37.2600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5332225-5 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5332225-5 key specifications
ParameterValue
SeriesCoaxicon
MountingFree Hanging (In-Line)
Connector typePlug, Female Socket and Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Cable groupRG-108, 108A
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolypropylene (PP)
PackageBulk
Includes5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator

All specifications

5332225-5 additional specifications
ParameterValue
ImpedanceNon-Constant
Body finishNickel
Mating cycles200
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingSilver

Product details

The 5332225-5: The connector style is BNC, Twinaxial — that means it uses the familiar bayonet-lock coupling but terminates a twin-axial cable pair rather than a single coaxial center conductor. The kit includes 5 pieces: the connector body, a contact, a ferrule, a gasket, and an insulator, so you're not chasing separate line items for a single cable termination.

Cable Prep and Termination

This plug terminates to cable group RG-108 via crimp on both the contact and the shield. The center contact is silver-plated, and the body is nickel-plated brass. The dielectric material is polypropylene (PP). The impedance is Non-Constant. The bayonet lock provides a quick, positive mate with a quarter-turn.

Frequently asked questions

Does 5332225-5 come with the ferrule and gasket included?

Yes, the kit includes 5 pieces: 1 connector, 1 contact, 1 ferrule, 1 gasket, and 1 insulator. Everything needed to terminate one cable end is in the bag.
