TE Connectivity AMP Connectors 5353185-8 — Mezzanine & Stacking Connectors

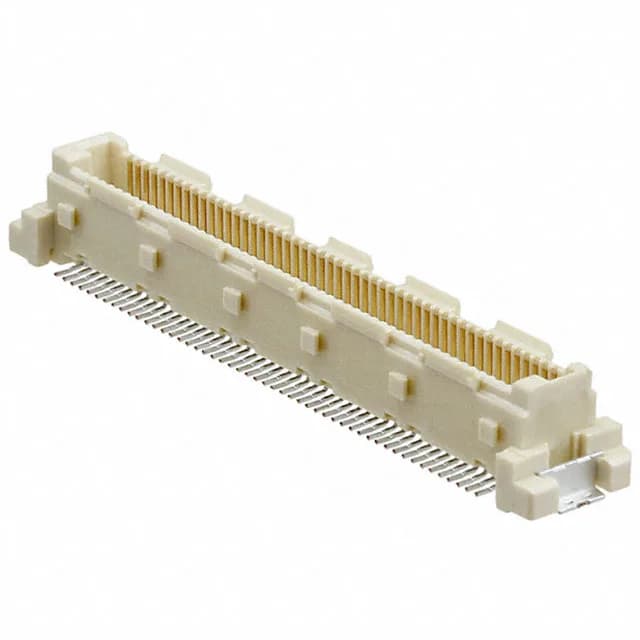

TE Connectivity 5353185-8, Free Height (FH) 100 Pos Plug

MPN5353185-8
Active

TE Connectivity Free Height (FH) series, Plug Outer Shroud Contacts, 100 positions, 2 rows, 0.024" (0.60mm) pitch, Surface Mount, Gold contacts, 4mm mated stack height, Tape & Reel.

$10.4200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFree Height (FH)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5353185-8 specifications
ParameterValue
SeriesFree Height (FH)
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.214\" (5.45mm)
Mated stacking heights4mm
Pitch0.024\" (0.60mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
Contact finishGold
Rows2
Positions100
Contact finish thickness8.00µin (0.203µm)

Product details

The TE Connectivity 5353185-8 is a 100-position plug from the Free Height (FH) series, designed as the top half of a board-to-board mezzanine interconnect. The connector sits 0.214" (5.45mm) above the board and mates to a corresponding Free Height receptacle at a 4mm stacking height — that 4mm figure is the z-height budget between parallel PCBs, so it decides the card spacing before you lay out the board.

The board guide aligns the connector during pick-and-place, and the solder retention anchors it through reflow — without that retention, the connector can shift under the shear load of a cable or mating cycle.

It's a current BOM line part, not a last-time-buy scavenge.

Frequently asked questions

What is the mated stack height of the 5353185-8?

The mated stack height is 4mm, which sets the z-height budget between parallel PCBs in a mezzanine configuration.
