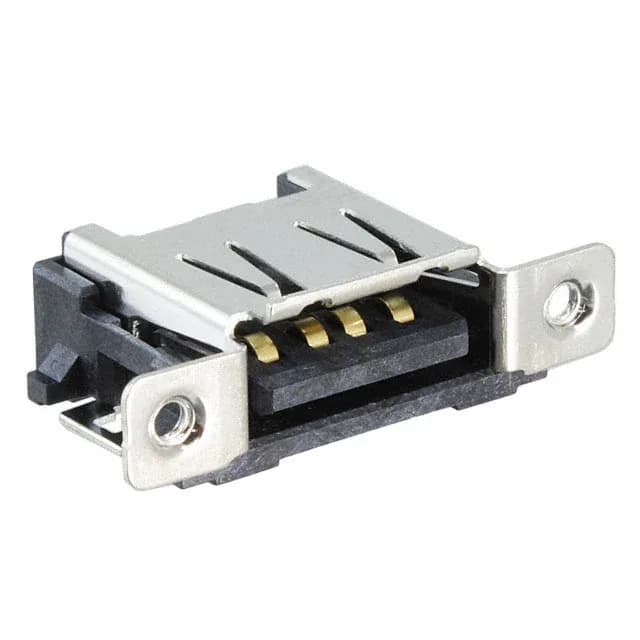

TE Connectivity 5353928-2, USB-A (USB TYPE-A) Receptacle, 4 Contacts, USB 2.0, Panel Mount, Surface Mount, Right Angle, Solder Termination, Gold Contact Finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Surface Mount, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Positions | 4 |
| Mounting feature | Flange, Horizontal |
| Insulation color | White |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Termination | Solder |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
It carries the standard 4-contact layout of a USB-A connector, with the right-angle body and horizontal flange letting the PCB sit parallel to the panel face — common in industrial control panels, test equipment, and kiosk interfaces where a front-accessible USB port is needed without a separate cable pigtail.
The Tape & Reel packaging suits automated pick-and-place lines for the SMT portion of the termination.
Yes, the 5353928-2 is ROHS3 compliant, meeting the latest RoHS directive requirements including the exemption categories.
