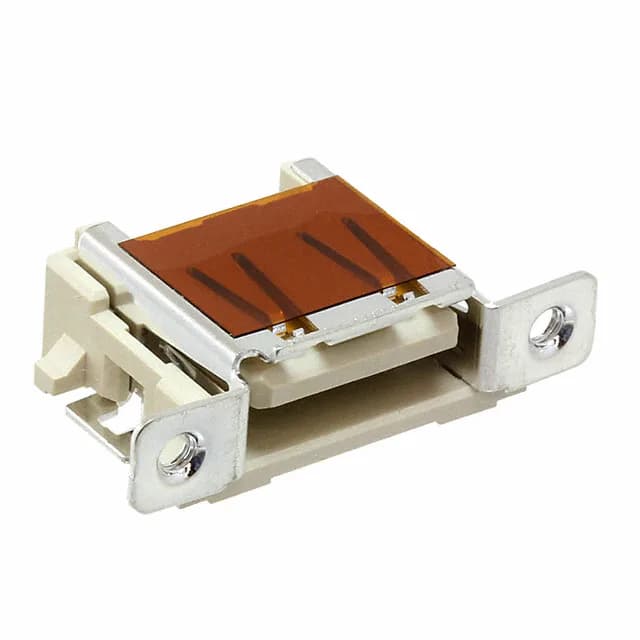

Panel-Mount USB-A for Enclosure Integration
It carries 4 contacts, each rated 1 A at 30 VAC, and is designed for panel-mount installations where the USB port needs to live on the outside of an enclosure rather than on the PCB edge. The right-angle orientation and flange mounting feature let the connector sit flush against the panel face, with the solder tails reaching down to the board — a common layout for industrial HMIs, test equipment, and kiosk I/O panels.
Mounting and Termination Flexibility
This part supports three mounting methods in one package: panel mount through the flange, surface mount on the PCB pads, and a right-angle body that keeps the USB-A port parallel to the board plane. The solder termination is compatible with standard reflow profiles for the SMT pads. A board guide feature on the housing aids alignment during assembly, which is helpful when the connector is seated into a cutout before soldering.
Rated for Repeated Field Mating
Rated for 1500 mating cycles.
This is an active TE Connectivity part, sourced through independent distribution. No direct pin-compatible substitute is listed on record; the 5353929-1 is the defined part for the panel-mount USB-A, USB 2.0, right-angle SMT footprint.
