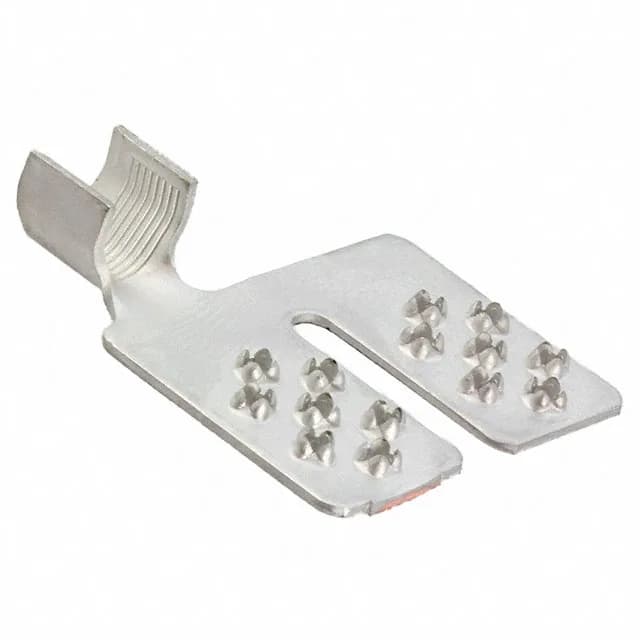

TE Connectivity AMP Connectors Termi-Foil, Double Face Slotted Terminal, 14-16 AWG, Tin-Plated Copper, 0.971" overall length, Active production.
| Parameter | Value |
|---|---|
| Series | Termi-Foil |
| Terminal type | Double Face, Slotted |
| Wire gauge | 14-16 AWG |
| Contact material | Copper |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Tin |
| Length - overall | 0.971\" (24.66mm) |
The 53645-2 is a Termi-Foil double-face slotted terminal from TE Connectivity AMP Connectors, designed to terminate foil conductors in the 14-16 AWG range. The slotted face accepts the foil strip; the tin-plated copper body provides a reliable, low-resistance crimp interface.
It accepts 14-16 AWG foil conductors. The double-face slotted terminal grips the foil on both sides for a secure mechanical and electrical connection.
Yes, it is ROHS3 compliant.
