TE Connectivity AMP Connectors 5380635-2 — PCB Pin Sockets

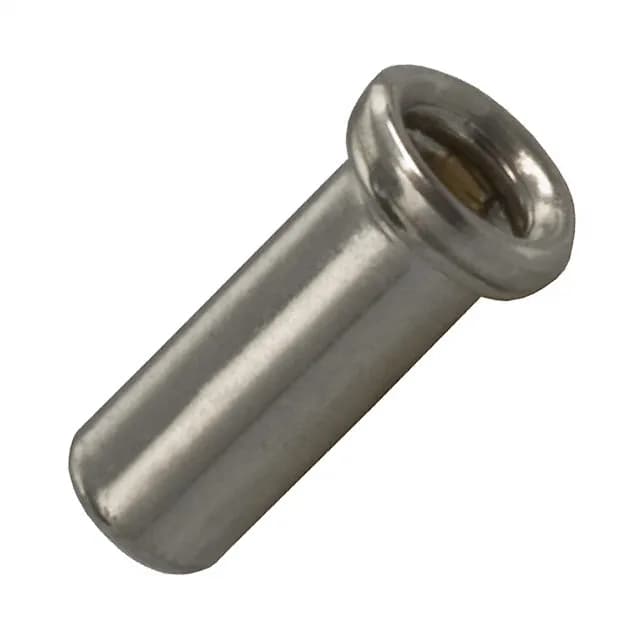

5380635-2 TE Connectivity PCB Pin Socket, Gold

MPN5380635-2
Active

TE Connectivity AMP Connectors 5380635-2, PCB Pin Socket, accepts 0.018" to 0.040" pin diameter, gold 30.0µin finish, beryllium copper contact, solder termination, no tail, bulk package.

$0.9400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5380635-2 datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5380635-2 specifications
ParameterValue
Tail typeNo Tail
Mounting hole diameter0.086\" ~ 0.089\" (2.18mm ~ 2.26mm)
Operating temperature-65°C ~ 126°C
Socket depth0.145\" (3.68mm)
Contact materialBeryllium Copper
PackageBulk
TerminationSolder
Contact finishGold
Board thickness0.156\" (3.96mm)
Flange diameter0.125\" (3.18mm)
Insertion force0.12N ~ 0.34N
Length - overall0.236\" (6.00mm)
Pin hole diameter0.048\" (1.22mm)
Accepts pin diameter0.018\" ~ 0.040\" (0.46mm ~ 1.02mm)
Contact finish thickness30.0µin (0.76µm)

Product details

Pin socket for 0.018" to 0.040" pins

The 5380635-2 is a PCB pin socket from TE Connectivity AMP Connectors, part of the PCB Pin Sockets family. It accepts pin diameters from 0.018" to 0.040" (0.46mm to 1.02mm), making it a versatile choice for connecting round pins of various sizes. The socket has a solder termination with no tail, and a socket depth of 0.145" (3.68mm). Overall length is 0.236" (6.00mm).

Fit and mounting details

The socket requires a mounting hole diameter of 0.086" to 0.089" (2.18mm to 2.26mm) and a pin hole diameter of 0.048" (1.22mm). The flange diameter is 0.125" (3.18mm). It is designed for a board thickness of 0.156" (3.96mm). The insertion force ranges from 0.12N to 0.34N, indicating a low-force fit suitable for automated assembly or frequent reconnection.

Frequently asked questions

Can 5380635-2 be used with 0.025 inch square pins?

The 5380635-2 accepts pin diameters from 0.018" to 0.040". A 0.025" square pin has a diagonal of approximately 0.035", which falls within the accepted range. However, the socket is designed for round pins; for square pins, confirm the corner radius and insertion force compatibility.

Is 5380635-2 RoHS compliant?

Yes, the 5380635-2 is ROHS3 compliant.
