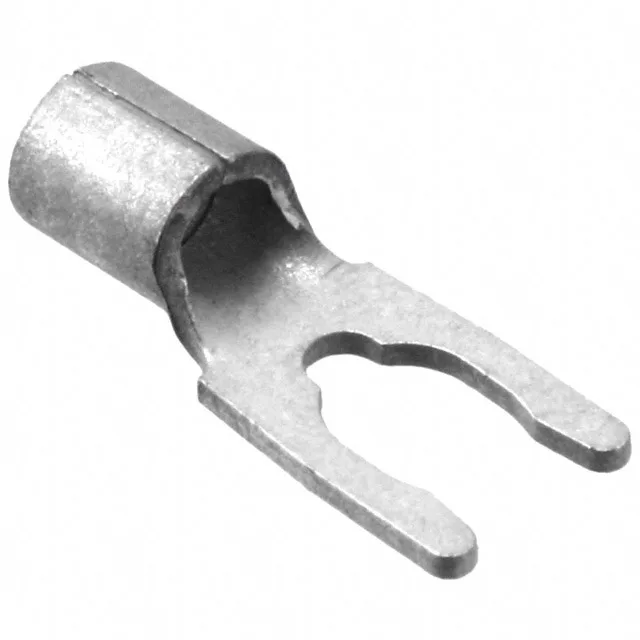

TE Connectivity AMP Connectors 53836-2
MPN53836-2
Active
CONN SPADE TERM 10-12AWG #10
$0.7300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 10-12 AWG |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.312\" (7.92mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.777\" (19.74mm) |
| Length - termination | 0.278\" (7.06mm) |
| Tongue inside opening | 0.190\" (4.83mm) |
| Length - ring center to termination | 0.276\" (7.01mm) |
