TE Connectivity AMP Connectors 53874-2
MPN53874-2
Active

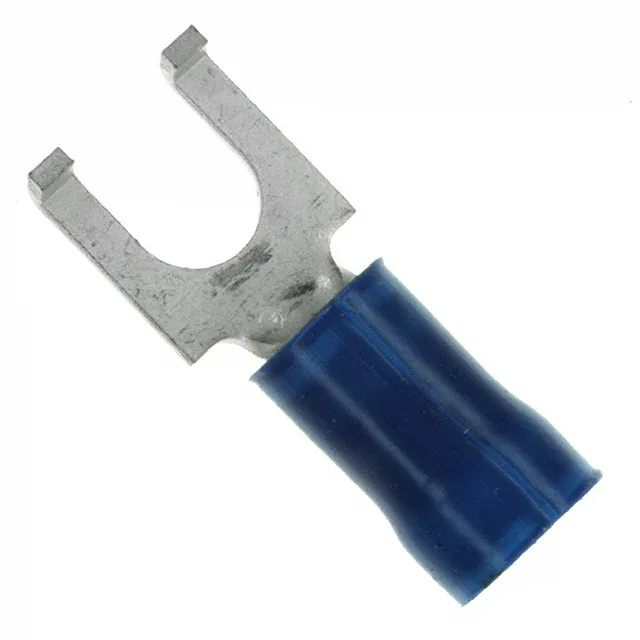

CONN SPADE TERM 14-16AWG #8 BLU
$0.7700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.294\" (7.47mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.780\" (19.81mm) |
| Insulation diameter | 0.118\" ~ 0.193\" (3.00mm ~ 4.90mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.171\" (4.34mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
