TE Connectivity AMP Connectors 5406203-3

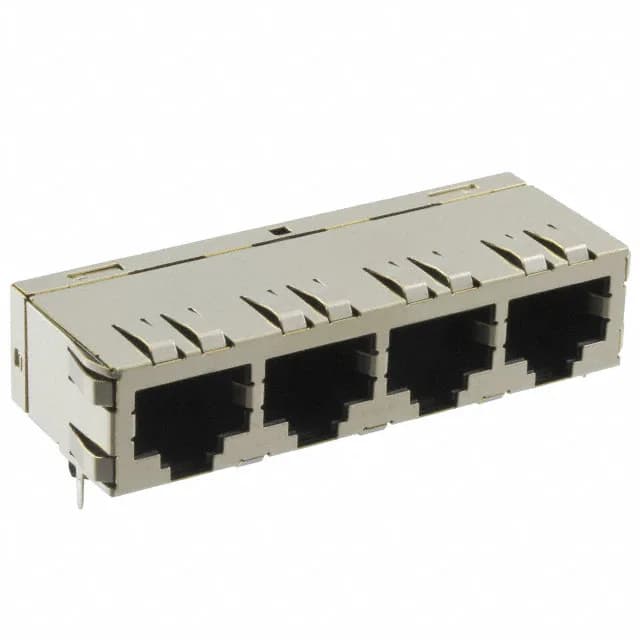

TE Connectivity 5406203-3 RJ45 Jack, 8P8C, Cat5, Shielded

MPN 5406203-3
Active

TE Connectivity, modular jack, 5406203-3, 8P8C (RJ45), Cat5, right-angle, through-hole, shielded with EMI finger, gold 50.0µin contacts.

$12.8400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5406203-3 specifications
ParameterValue
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon
PackageTray
RatingsCat5
FeaturesBoard Guide
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)
TerminationSolder
Tab directionDown
Contact finishGold
Rows1
Number of ports4
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)8p8c (RJ45, Ethernet)

Product details

The TE Connectivity 5406203-3 is a shielded RJ45 modular jack, 8P8C (8 position, 8 contact), rated for Cat5 applications. It sits in the 5406203 base series of right-angle, through-hole jacks with EMI finger shielding. The gold-plated phosphor bronze contacts (50.0µin) handle repeated mating cycles in data-com and industrial Ethernet panels.

This matters in industrial environments where variable-frequency drives and switching supplies radiate into the cabling. The Cat5 rating limits the usable bandwidth to 100 MHz — adequate for 100BASE-TX and most building-automation fieldbus networks, but not for Gigabit Ethernet or PoE+ power levels without checking the contact current capacity.

Mounting and PCB Fit

Right-angle orientation with the tab facing down, through-hole solder termination. Four ports in a single row — the 8P8C pinout per port follows the standard wiring; the EMI fingers on the shell need a ground plane connection on the PCB to work as intended.

MPN
5406203-3
