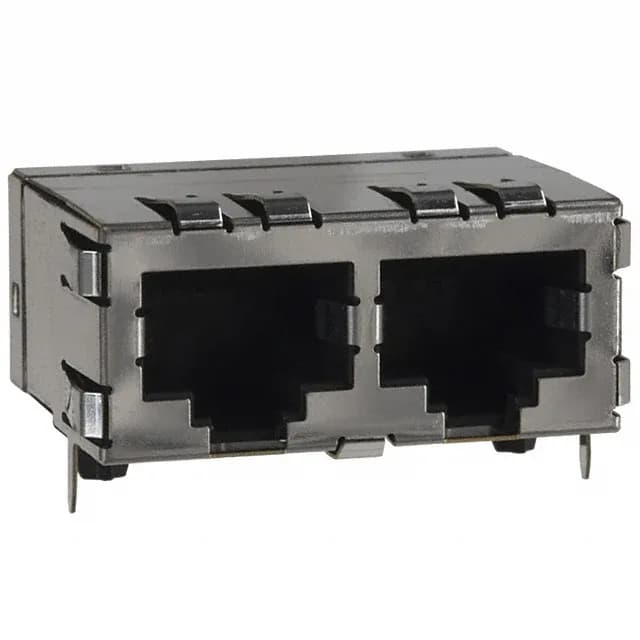

TE Connectivity, modular jack, 5406562-1, 8p8c (RJ45, Ethernet), right-angle, through-hole, shielded with EMI finger, gold 50.0µin contacts, 2 ports, -40°C to 85°C, tray.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Jack |
| Operating temperature | -40°C ~ 85°C |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon |
| Package | Tray |
| Ratings | Cat4 |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Down |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 2 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
Two ports share a single shielded body with an integrated EMI finger that grounds the cable shield before the signal reaches the PCB, which is the kind of detail that saves a layout engineer a separate ferrite or grounding clip. The housing is polyamide (PA/nylon) with a board guide to align the connector during hand-assembly or reflow.
No official pin-compatible alternative or cross-reference is listed for this part. The 5406562-1 is the current production version; if you need a second source, the base product number 5406562 covers variants — verify the specific shielding and port count against your BOM.
