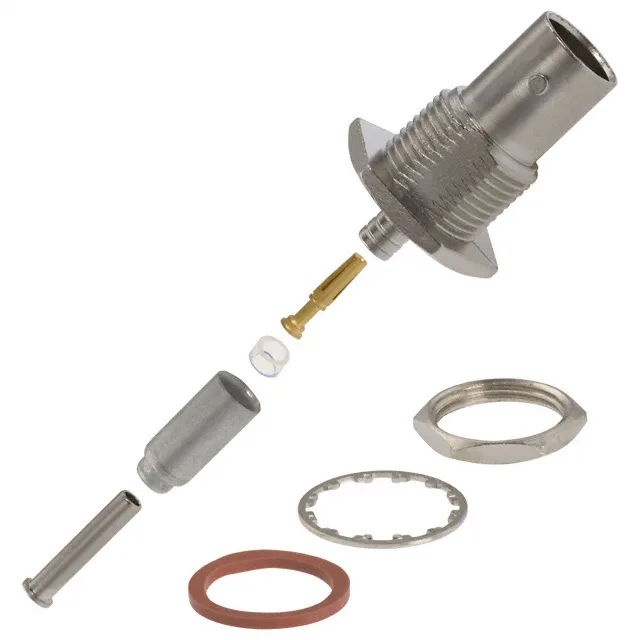

5413590-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5413590-8 BNC Jack, 75 Ohm, 2 GHz, Obsolete

MPN5413590-8
Obsolete

TE Connectivity BNC jack, 75 Ohm, panel mount, bayonet lock, crimp termination for RG-179/187, 500 V, 2 GHz, gold-plated beryllium copper center contact, nickel-plated zinc body.

$0.8400Ref. price · indicative, final on quote
5413590-8 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5413590-8 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-179, 187
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolyethylene (PE)
Center contact materialBeryllium Copper
PackageBulk
Includes8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 2 Sleeves
Impedance75 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

BNC Jack for RG-179/187 — 75 Ohm, Panel Mount

The TE Connectivity 5413590-8 is a 75-Ohm BNC jack (female socket) with a bayonet lock, designed for panel-mount bulkhead installation using a front-side nut. The center contact is gold-plated beryllium copper, the body is nickel-plated zinc, and the dielectric is polyethylene. Rated for 500 V and 2 GHz max frequency, with 500 mating cycles and 0.15 dB insertion loss.

What's in the Kit

This is a complete mounting kit — 8 pieces per package: one BNC jack, one contact, one ferrule, one gasket, one lockwasher, one nut, and two sleeves. Everything needed for a single panel-mount termination, no separate hardware to source.

Cable and Termination Match

This jack is built for RG-179 coax — 75-ohm, small-diameter cable common in video, CCTV, and telecom patch panels. The crimp termination for both center contact and shield means you need a crimp tool with the correct die for RG-179. No soldering required on site.

Frequently asked questions

What cable does 5413590-8 use?

This BNC jack is designed for RG-179 and RG-187 coaxial cable — both 75-ohm, small-diameter types commonly used in video and telecom installations.

What is the impedance of 5413590-8?

The 5413590-8 is a 75-Ohm BNC jack, rated to 2 GHz maximum frequency with 0.15 dB insertion loss.
