TE Connectivity, BNC, Jack, Female Socket, 50 Ohms, 4 GHz, Bayonet Lock, Crimp Termination, Free Hanging, 500 Mating Cycles, -55°C to 85°C.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-179, 179A, 179B, 187, 187A |
| Operating temperature | -55°C ~ 85°C |
| Body material | Zinc |
| Housing color | Silver |
| Dielectric material | Polymethylpentene (PMP) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Parameter | Value |
|---|---|

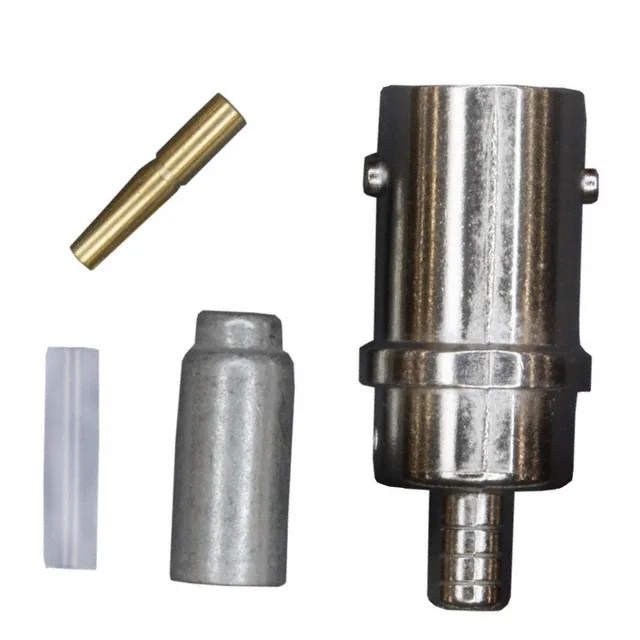

| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 5413779-4: The crimp shield termination and crimp contact termination make field assembly straightforward with the right tooling.
This jack accepts RG-179, 179A, 179B, 187, and 187A cable groups. At 500 V rated voltage, it handles the signal levels these cables typically carry.
Impedance must match the system (50 ohms) to avoid signal reflection.
Ensures the connector fits the installed cable (RG-179, 179A, 179B, 187, 187A).
Buyers need a reliable source with stock to avoid delays.
Stock availability affects procurement lead time and production schedules.
Material (zinc with nickel finish) determines durability and environmental suitability.
Helps sourcing alternatives if the exact part is unavailable or for cost comparison.
