Frequency response extends to 2 GHz, with a voltage rating of 500 V.
What ships in the box

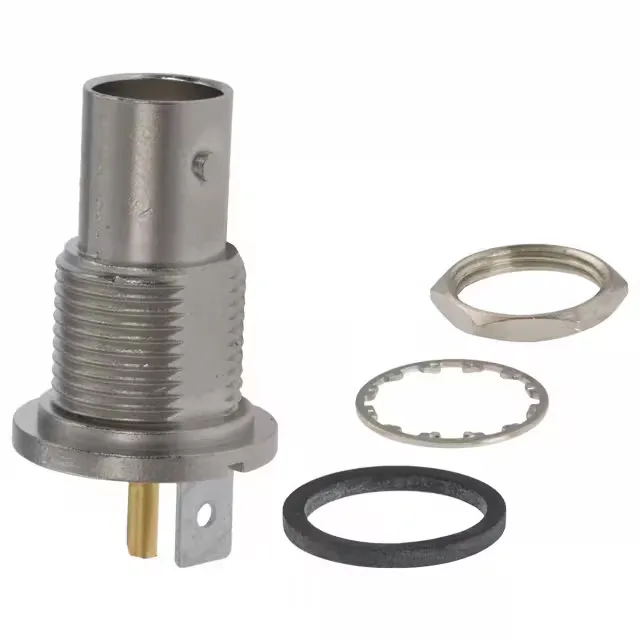

This order code ships as a complete bulkhead assembly kit: one BNC jack connector, one panel gasket, one lockwasher, and one front-side nut. No separate hardware sourcing is needed — the gasket seals the panel cutout, and the lockwasher prevents the nut from loosening under vibration.
Where this BNC fits
The 75 Ohm impedance targets composite video, HD-SDI, and broadcast distribution where the characteristic impedance of the cable and connector must match. The 2 GHz bandwidth covers standard-definition through HD-SDI signal rates. The bayonet lock provides quick field mate and unmating — the 500-cycle gold plating supports repeated reconnection without contact fretting.
The nickel-plated zinc body provides RF shielding and corrosion resistance in outdoor or washdown environments.
