SMB Right-Angle Jack for Board-Edge RF Launch

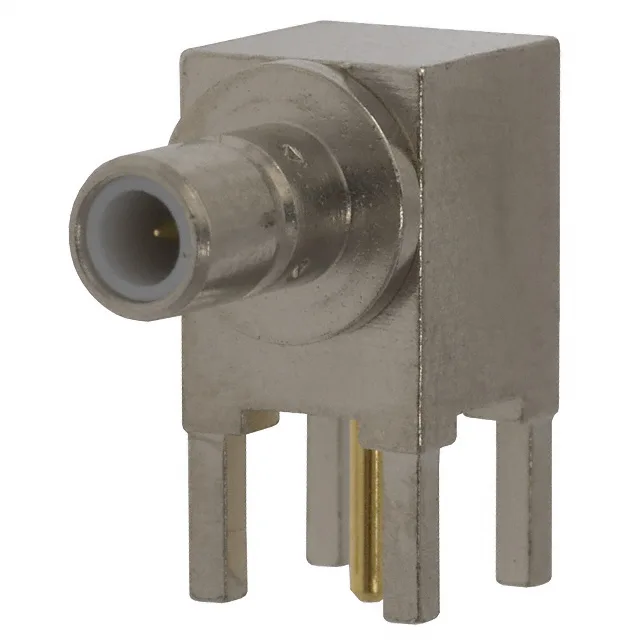

The TE Connectivity 5414337-1 is an SMB jack with a male pin centre contact, designed for through-hole right-angle mounting on a PCB. The zinc alloy body with nickel finish and gold-plated brass centre contact supports 500 mating cycles, and the PTFE dielectric keeps the signal path stable across the -65°C to 165°C operating range.
RF Performance and Mechanical Fit
The 3 GHz frequency ceiling and 0.6 dB insertion loss define the usable bandwidth — for designs running below 3 GHz, this jack delivers a clean launch from the board edge. The snap-on fastening gives quick mate/demate for test points or field-swappable modules, while the 500-cycle rating means it holds up under repeated connection without contact degradation. The nickel-plated zinc alloy body provides RF shielding and corrosion resistance in indoor equipment environments.
