TE Connectivity AMP Connectors 5414363-4 — RF Cable Assemblies

TE Connectivity 5414363-4 SMB Plug, 50 Ohm, 3 GHz, Bulk

MPN5414363-4
Active

TE Connectivity SMB plug, female socket, 50 Ohm impedance, 3 GHz max frequency, 1 port, free-hanging right-angle, snap-on fastening, crimp shield termination, solder contact termination, nickel body finish, bulk package.

$5.3400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5414363-4 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5414363-4 key specifications
ParameterValue
MountingFree Hanging (In-Line), Right Angle
Connector typePlug, Female Socket
Fastening typeSnap-On
Voltage rating335 V
Frequency - max3 GHz
Cable groupRG-174, 188, 316 (Double Braid)
Operating temperature-65°C ~ 165°C
Body materialZinc
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
PackageBulk
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule

All specifications

5414363-4 additional specifications
ParameterValue
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.6dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

SMB Plug for RG-174, RG-188, RG-316 — 50 Ohm, 3 GHz

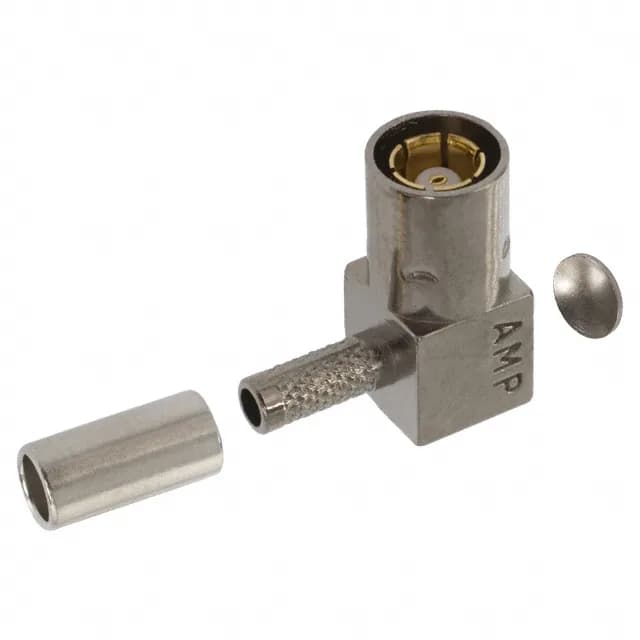

It ships as a three-piece kit: the connector body, an end cap, and a crimp ferrule — one order code covers the full assembly for terminating RG-174, RG-188, or RG-316 double-braid cable.

Cable Termination and RF Performance

Shield termination is crimp; the centre contact is soldered. Insertion loss is 0.6 dB at the rated frequency — typical for a snap-on SMB interface at 3 GHz. The 500 mating cycles are above the 250-cycle baseline for many SMB connectors, giving this plug a longer service life in test or field-swap applications.

The body is zinc with a nickel finish; the centre contact is gold-plated. The snap-on fastening provides a positive lock without a threaded coupling — quick to mate and unmated, but the retention force is lower than a threaded interface, so it suits low-vibration indoor or bench environments rather than heavy machinery.

Frequently asked questions

What cable group does the 5414363-4 support?

It is designed for RG-174, RG-188, and RG-316 double-braid coaxial cable, as listed in the manufacturer's specifications.

What is the impedance of the 5414363-4 connector?

The 5414363-4 is a 50 Ohm connector, rated for operation up to 3 GHz.

What is the closest functional second-source for the 5414363-4?

The 415420-1 is the closest peer in the same TE series — also an SMB plug in bulk packaging with an active lifecycle. Verify cable group and ferrule compatibility before substituting.
