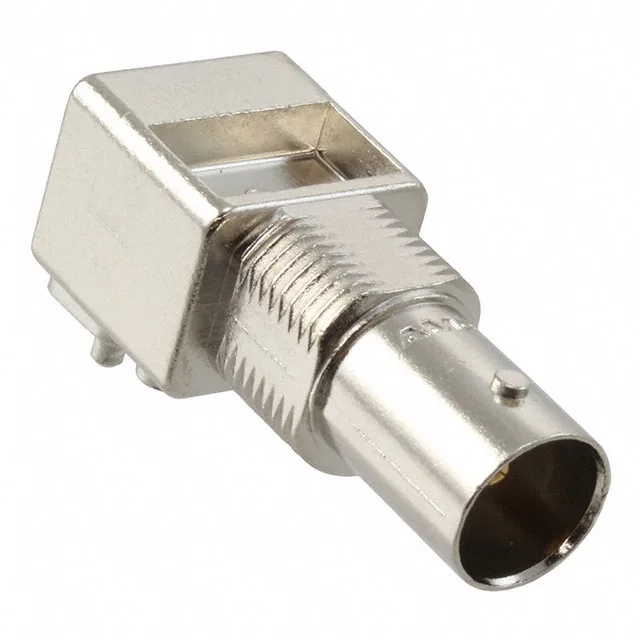

5414907-3 — TE Connectivity AMP Connectors product photo

TE Connectivity 5414907-3 BNC Jack, 75 Ohm, 2 GHz, Bulkhead

MPN5414907-3
Active

TE Connectivity BNC jack, 75 Ohm, 1 port, right-angle PCB mount, bulkhead front-side nut, solder termination, 2 GHz max, 500 V, 500 mating cycles, -55°C to 85°C.

$9.8760Ref. price · indicative, final on quote
StockIn Stock (27)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5414907-3 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialBeryllium Copper
PackageBulk
Impedance75 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 5414907-3: The bayonet lock gives a positive mate that won't back off under light vibration.

500 Mating Cycles and a Bayonet Lock — Field-Service Grade

That cycle count tells you this jack is built for install-and-service, not for a production test fixture that sees thousands of connects. If you are swapping a card or re-terminating a cable run a few times a year, the 500-cycle spec gives you years of margin.

The package is Bulk, which suits both prototype builds and production runs without the premium of cut-tape or reel fees.

Frequently asked questions

Where to buy 5414907-3 with in stock and lowest price?

Drives immediate purchase decisions by connecting buyers to the best sourcing option.

What is the datasheet for TE Connectivity 5414907-3?

Critical for design engineers to validate fit, pinout, and electrical specs.

Is 5414907-3 equivalent to any other BNC jack like Amphenol 31-220?

Allows buyers to find alternatives if this part is out of stock or obsolete.

What is the lead time for 5414907-3 from major distributors?

Sourcing buyers need to plan procurement and avoid project delays.

Does 5414907-3 meet RoHS requirements?

Compliance is mandatory for many markets and affects part selection.

What impedance is the 5414907-3 connector?

Ensures correct match for signal integrity in video or RF applications.
