TE Connectivity SMB plug, female socket, 50 Ohm, 5 GHz, crimp for RG-179, snap-on, nickel body, gold center contact, 500 mating cycles, -65°C to 165°C.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Socket |
| Fastening type | Snap-On |
| Voltage rating | 335 V |
| Frequency - max | 5 GHz |
| Cable group | RG-179 |
| Operating temperature | -65°C ~ 165°C |
| Body material | Zinc Alloy |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Parameter | Value |
|---|---|
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.3dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 5414946-5: The snap-on fastening provides quick, tool-less mating and unmating, rated for 500 cycles.
Rated to 5 GHz maximum frequency with 0.3 dB insertion loss, 50 Ohm impedance, crimp for RG-179.

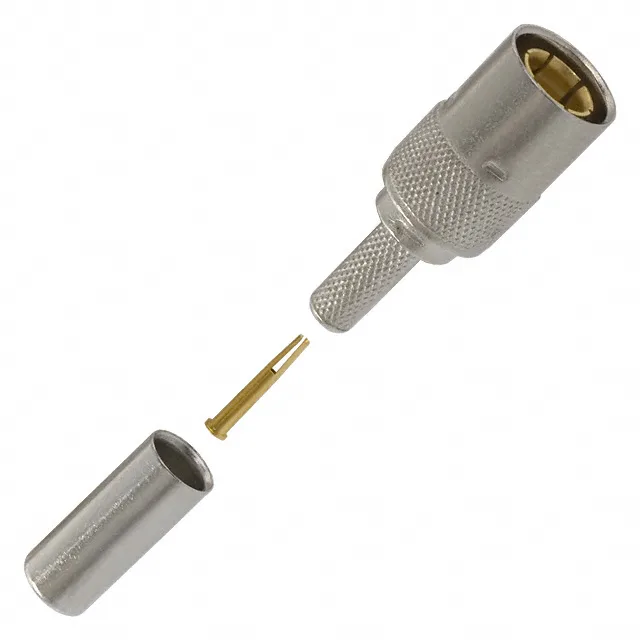

The 5414946-5 is supplied as a kit containing three pieces: one SMB plug connector body, one center contact, and one ferrule. The package is Bulk.
No official replacement part number is recorded for the 5414946-5.
