SMB Jack for RG-188/316 – 50 Ohm, 4 GHz, Panel Mount
The 5415006-1: It delivers a 50 Ohm impedance path through the bulkhead, with a snap-on fastening that gives quick, tool-less mating. The connector is rated to 4 GHz with 0.3 dB insertion loss, making it suitable for RF signal paths in test equipment, antenna feeds, or instrumentation where a compact push-on interface is preferred over threaded types.
RF Performance and Mechanical Durability
The 4 GHz upper frequency limit and 0.3 dB insertion loss are specified.

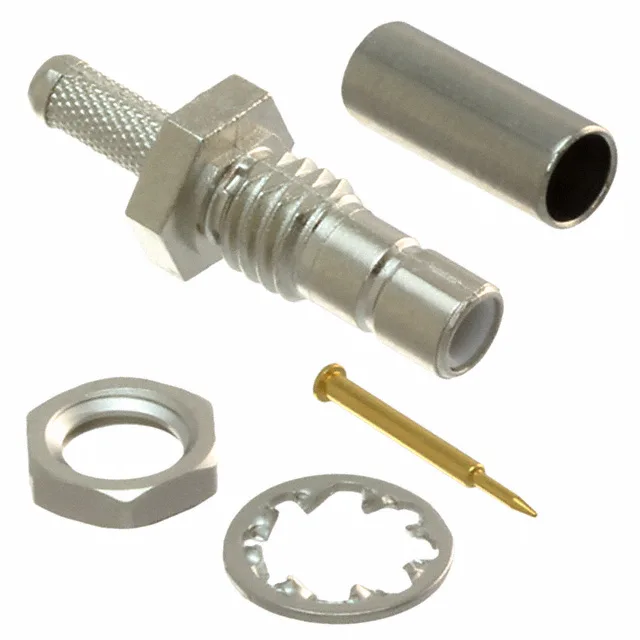

What's in the Box and How It Mounts
The crimp termination for the shield and center conductor is standard for RG-188 — no soldering required on the braid. The nickel body finish provides corrosion resistance for the bulkhead interface.
