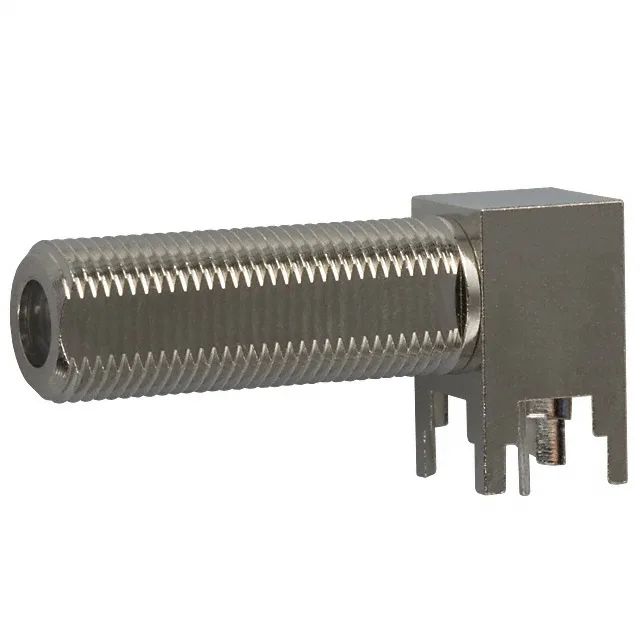

5415024-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5415024-1 F Type Jack, 75 Ohm, 1 GHz

MPN5415024-1
Obsolete

TE Connectivity F Type jack, female socket, 75 Ohms, 1 GHz, panel mount through-hole right-angle, solder termination, nickel body, bulk package.

$1.9300Ref. price · indicative, final on quote
5415024-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5415024-1 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max1 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal, Polypropylene (PP)
Center contact materialPhosphor Bronze
PackageBulk
Impedance75 Ohms
Body finishNickel
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingTin

Product details

The TE Connectivity 5415024-1 is an F type jack, female socket — the standard 7/16-28 threaded interface for CATV, satellite, and broadband video distribution. 75 Ohm impedance matches the characteristic impedance of RG-6 and RG-59 coax cable runs, and the 1 GHz frequency ceiling covers the full downstream and upstream cable spectrum through DOCSIS 3.1. Panel-mount through-hole with right-angle solder termination — the bulkhead front-side nut secures the connector to the chassis, and the right-angle tail routes the signal to the PCB trace without a separate jumper. Nickel-plated brass body, silver housing, dielectric in POM acetal and polypropylene. Rated 500 V and operates from -65°C to 85°C.

Sourcing & Lifecycle

No official replacement part number is recorded.

Frequently asked questions

Is 5415024-1 obsolete?

Yes, the 5415024-1 carries an Obsolete lifecycle status from TE Connectivity. No official replacement part number has been issued.

What is the impedance of 5415024-1?

The 5415024-1 is a 75 Ohm F type jack, designed for 75 Ohm coax systems such as RG-6 and RG-59.

What is the mounting type for 5415024-1?

The 5415024-1 mounts to a panel via a bulkhead front-side nut and terminates through-hole right-angle to the PCB.
