TE Connectivity 5415025-2 BNC Jack, 50 Ohm, 4 GHz, Obsolete

MPN5415025-2
Obsolete

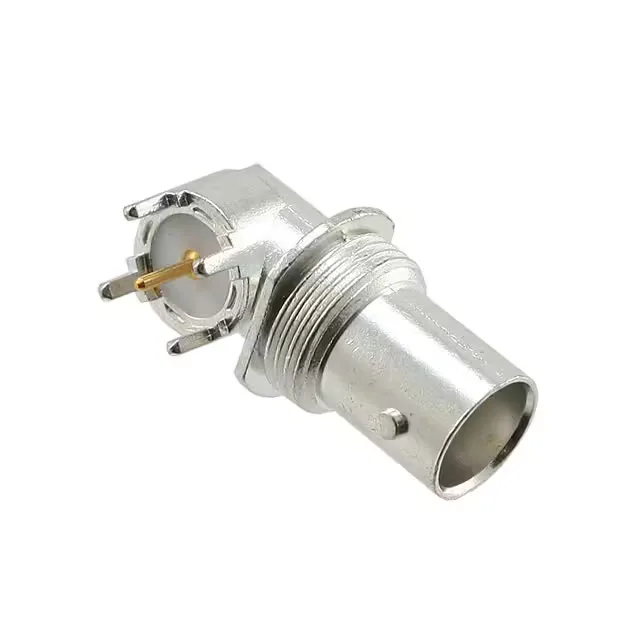

TE Connectivity BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, panel mount through-hole right-angle, solder cup, gold-plated centre contact, bulkhead front-side nut, 500 mating cycles.

$10.7300Ref. price · indicative, final on quote
5415025-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5415025-2 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C~85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageTray
Impedance50Ohm
Body finishTin
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The right-angle PCB tail and front-side nut bulkhead mount let you land this on a board edge and secure it to a panel in one pass. Gold-plated centre contact on phosphor bronze handles the 500 mating cycles the spec calls for; the PTFE dielectric keeps the impedance stable across the band.

Lifecycle & Sourcing

No official replacement or successor is listed on record. If you need a current-production BNC jack at 50 Ohm with similar ratings, the storefront can help identify a live alternative against your specific footprint and frequency requirements.

Mounting & Termination

Panel mount with a front-side nut, through-hole right-angle PCB tails, and a solder cup for the shield. The centre contact terminates via solder cup as well — a clean hand-solder job on the centre pin and shield braid. The bulkhead flange seats against the panel; the nut tightens from the front side, so the connector body stays fixed while you torque the nut. The right-angle tail orientation puts the board parallel to the panel face, saving depth in a shallow enclosure.

Frequently asked questions

Where can I buy 5415025-2?

The 5415025-2 is obsolete, but we source it through independent distribution and quote it to order against an RFQ. Contact the storefront with your BOM quantity for a same-day quote — availability and current pricing are confirmed at quote time.

What is the impedance of 5415025-2?

The 5415025-2 is a 50 Ohm BNC jack, rated to 4 GHz maximum frequency and 500 V.

What is the mounting type of 5415025-2?

Panel mount with a front-side nut, through-hole right-angle PCB termination, and a solder cup for the shield. The centre contact also terminates via solder cup.
