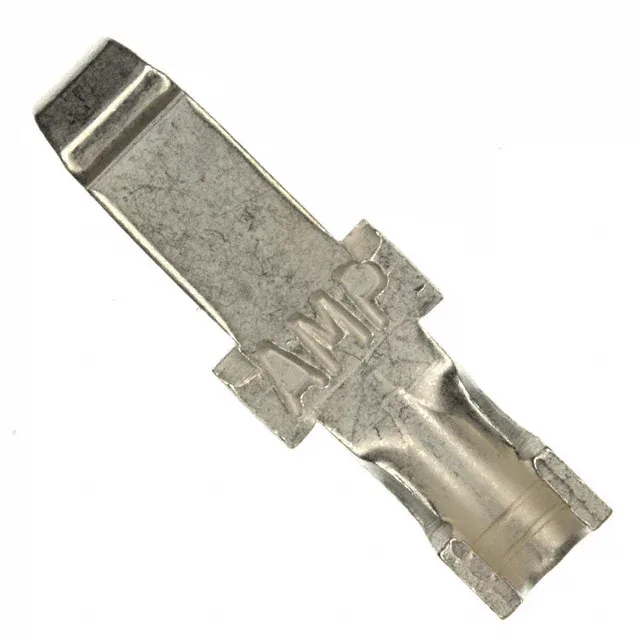

TE Connectivity AMP Connectors 1 series power pin, order code 54329-1, pin contact, 12-18 AWG, silver-plated 200.0µin (5.08µm), solder termination, bulk package.
| Parameter | Value |
|---|---|
| Type | Power |
| Series | 1 |
| Wire gauge | 12-18 AWG |
| Package | Bulk |
| Pin or socket | Pin |
| Contact finish | Silver |
| Contact termination | Solder |
| Contact finish thickness | 200.0µin (5.08µm) |
The 54329-1 is a gendered pin contact, while the same-series peer 53892-2 is non-gendered — both share the 12-18 AWG wire range and 200.0µin silver plating, but the 54329-1 terminates via solder versus the 53892-2's crimp termination.
No — the 54329-1 is a pin contact with solder termination, while the 53892-2 is a non-gendered crimp contact. They are not drop-in replacements; the termination method differs and the 54329-1 is gendered.
